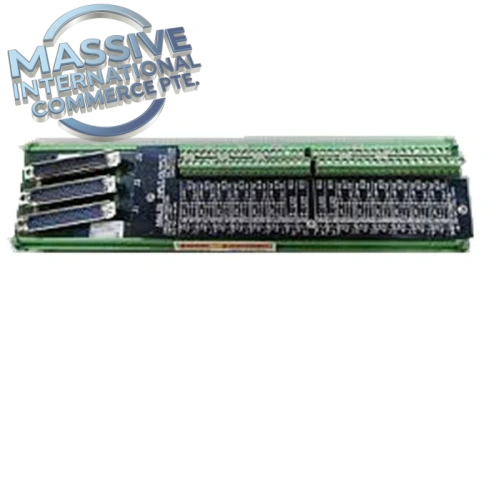

Woodward 5501-372 | MicroNet Digital Governor I/O Module, UL Listed, Factory Sealed

Description

Unboxing & Physical Snapshot

• Brand & Model: Woodward 5501-372, Digital Governor I/O Module
• Physical Dimensions: 20.5 in W × 10.0 in H × 6.0 in D
• Estimated Shipping Weight: 3.3 lb (packaged with anti-static foam and carton)
• What’s in the Box: Governor I/O module, integrated anodized aluminum heatsink, printed datasheet; terminal connectors sold separately.

Product Introduction (Structure C: Compliance hook)

Qualified OEM hardware such as the Woodward 5501-372 is mandatory for sites subject to power generation safety audits, as non-OEM substitutes cannot satisfy local machinery protection documentation requirements. This governor module acquires magnetic pickup speed signals and executes overspeed and underspeed protection logic for gas turbines and reciprocating engines.

Onboard fault diagnostics flag open MPU wiring or supply voltage drift before a full trip event. (This diagnostic coverage reduces blind failure modes during unattended plant runs.) The metal enclosure isolates internal circuitry from radiated noise present in engine control cabinets near starters and excitation hardware.

Core Technical Specifications

Global Compliance & Industry Certifications

• CE Mark
• UL/cUL Listed
• ATEX Class I Div 2 compliant for qualified production lots
• DNV GL marine approval available for marine engine packages

The UL/cUL listing validates component spacing and material flammability ratings inside the metal housing, lowering risk of internal short-circuit propagation on generator packages. Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the module sealed inside its original ESD shielding bag and rigid shipping carton for shelf storage. Even low-level electrostatic discharge can degrade the MPU input front-end and create intermittent speed reading errors after installation.

Inspect the module’s internal electrolytic capacitors every 24 months for units held longer than three years. Apply slow voltage reforming if the asset will remain stored beyond four years, to prevent capacitance loss that impairs speed measurement stability.

Do not stack heavy rack assemblies directly on the top cover. Compressive load can bend the heatsink mounting points and crack the internal PCB traces.

Physical Installation Prerequisites

Leave a minimum of 50 mm clearance above and below the unit for convection cooling. Restricted airflow raises junction temperatures and accelerates aging of the power regulation components.

Secure the module to panel or rack mounting points using M5 machine screws at all four corners. Run a dedicated instrument ground wire to the chassis ground lug; do not share this ground path with high-current relay circuits.

Buyer’s FAQ

Q: What HS tariff code applies to Woodward 5501-372 for cross-border shipments? A: Primary HS classification is 853710 for electronic governor control assemblies. Confirm classification with your customs broker, as country-specific rulings depend on supporting technical documentation.

Q: What country of origin is marked on Woodward 5501-372? A: Country of Origin is United States. This marking appears on the unit nameplate and must be reproduced on commercial invoices for export compliance audits.

Q: Does the 5501-372 ship with preloaded governor firmware? A: Yes. The module ships with factory-loaded base firmware. Site-specific tuning parameters must be downloaded after physical installation.

Q: Is all-risk cargo insurance recommended for this spare governor module? A: Yes. PCB or heatsink damage from transit shock may not present until power-up. All-risk coverage protects full replacement value for handling-related defects.
