Description
Product Overview

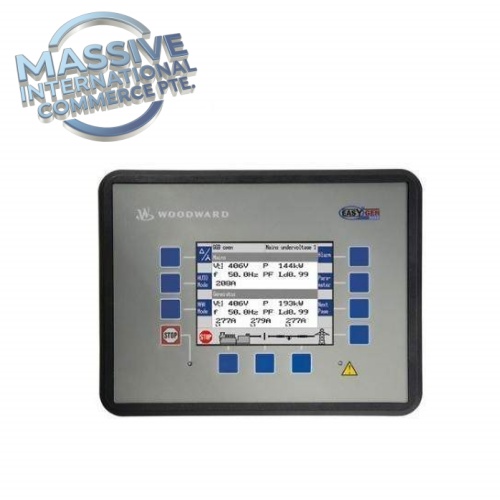

The Woodward 8440-2085 is the easYgen-3500XT-P1 all-in-one generator control and protection unit, belonging to the easYgen-3000XT power management platform. This panel-mounted controller integrates engine start/stop, voltage regulation, frequency control, synchronizing, load sharing, generator protection and utility tiebreaker logic for complex multi-generator power systems. It supports peer-to-peer paralleling for up to 32 gensets and multiple bus tie breakers, with redundant Ethernet and CANopen communication. The P1 package comes with standard onboard I/O and LS-5 breaker control interface, suitable for critical standby power, island mode, combined heat and power, and utility paralleling applications in data centers, hospitals, industrial plants and oil & gas facilities. It is commonly stocked as a direct drop-in spare for multi-generator control systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 8440-2085 |
| Manufacturer | Woodward |
| Product Type | easYgen-3500XT-P1 Generator Paralleling & Protection Controller |
| Mounting | Panel mount |
| Display | Full colour graphical LCD with keypad |
| Voltage Input | Direct connect up to 690 VAC |
| Power Supply | 9–36 VDC (24 VDC nominal) |
| Communication | Redundant Ethernet, CANopen, RS485 Modbus |
| Paralleling Capacity | Up to 32 gensets, multiple tie breakers |
| Breaker Interface | Supports up to 16 LS-5 breaker controls |
| Protection Functions | Over/under voltage, over/under frequency, overcurrent, reverse power, loss of excitation, over temperature |
| Load Control | Isochronous load sharing, base load, import/export control |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Altitude Rating | Up to 4000 m without derating |
| Enclosure | Front panel IP65, rear housing IP20 |
| Approximate Weight | 1.2 kg |
Compliance & Certifications
- CE mark for EMC and Low Voltage Directive
- UL recognized for industrial genset control
- IEC 60255 protection relay standards
- Factory full functional testing, protection and paralleling validation before shipment
- RoHS compliant
Storage & Installation Guidelines
Storage Requirements
- Store indoors in dry temperature-controlled warehouse; recommended ambient temperature 10°C ~30°C, RH <70% non-condensing
- Keep sealed inside original packaging before installation
- Protect from mechanical shock, continuous vibration, dust and corrosive vapors
- ESD wristband required when handling internal wiring and connectors
Installation Instructions
- Execute lock-out/tag-out procedures for generator, utility supply and 24VDC control power before replacement
- Wear ESD protective gear to prevent electrostatic circuit damage
- Cut panel cutout and insert controller from front, fasten mounting clips
- Wire AC voltage/current transformers, engine sensors, digital inputs, relay outputs and 24VDC supply following Woodward easYgen wiring diagram
- Connect Ethernet / CANopen communication cables for multi-generator peer network
- Apply control power, configure genset parameters, protection thresholds and paralleling logic via front panel or PC software
- Perform CT/PT polarity check, dry run synchronization test and full load test
- Commissioning must be completed by certified power system / genset control technicians
FAQ
Q: What does P1 stand for in easYgen-3500XT-P1 (8440-2085)? A: P1 package includes standard onboard I/O and LS-5 breaker interface, designed for complex multi-generator paralleling applications.
Q: How many generators can this controller coordinate? A: It supports peer-to-peer network for up to 32 generator sets and multiple bus tie breakers.
Q: Can it work in redundant control configuration? A: Yes, the easYgen-3000XT platform supports redundant controller deployment for single genset high-reliability applications.
Q: What protection features are built in? A: Over/under voltage, over/under frequency, overcurrent, reverse power, loss of excitation, engine over-temperature and many configurable protective alarms and trips.
Q: What warranty is available? A: Standard 12-month warranty applies for fully tested controllers operated under rated normal operating service conditions.
