Description
Unboxing & Physical Snapshot

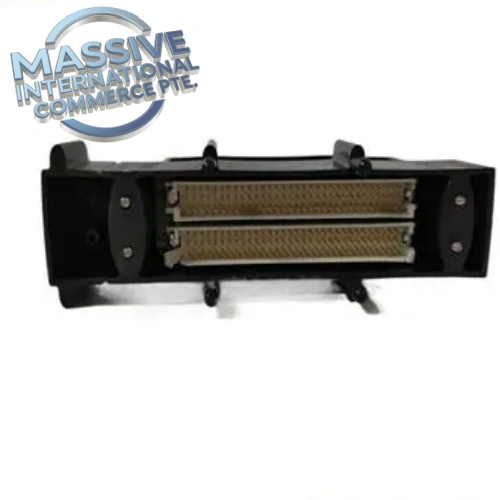

- Brand & Model: Triconex 2000417, Tricon triple modular redundant (TMR) safety system power module
- Physical Dimensions: 12.6 in H × 2.1 in W × 8.3 in D
- Estimated Shipping Weight: 4.2 lb (packaged with anti-static foam and heavy-duty export carton)
- What’s in the Box: Power module assembly, rack edge connector, front panel status LEDs, factory serial test certificate; rack backplane and power cabling sold separately.
Product Introduction (Structure B: Architecture hook)
This power module plugs directly into the Tricon SIS rack and supplies regulated, fault-tolerant DC power to the triple redundant processor and I/O slices for emergency shutdown and fire & gas safety loops. It continuously monitors internal voltage, current and temperature while performing built-in self-tests, ensuring power integrity even if one internal power path degrades.
Independent fault detection circuitry isolates power faults so they cannot propagate to adjacent TMR slices. (Cross-slice fault containment is a core requirement during IEC 61508 SIL third-party audits.) The conformal coated PCB guards internal power semiconductors from dust and humidity in petrochemical and power generation control rooms.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | Tricon TMR Safety Instrumented System (SIS) rack |
| Input Voltage | 120/240 VAC universal input |
| Output Power | Regulated DC output for Tricon rack backplane |
| Architecture | Triple redundant power monitoring and fault diagnostics |
| Status Indicators | Front panel LED for power OK, fault, alarm |
| Operating Ambient Temp | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 PCB, conformal coating, metal chassis, rack edge connector |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- SIL 3 capable (system-level IEC 61508 assessment required)
- ATEX / IECEx available for qualified production lots
- FMEDA safety calculations available for SIS verification
The UL/cUL listing verifies component spacing, insulation and thermal limits to reduce fire risk under internal power component failure. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the module sealed in its original ESD shielding bag and rigid shipping carton during shelf storage. Electrostatic discharge can damage power regulation semiconductors and trigger false power-fault alarms after rack insertion.
Inspect electrolytic capacitors every 24 months for spare units stored longer than three years. Controlled voltage conditioning is required for spares held past four years; aged capacitance can cause voltage sag under high rack load transients.
Do not stack heavy rack modules on the module metal chassis. Mechanical shock can crack PCB traces or loosen internal power components, leading to intermittent power dropout after commissioning.
Physical Installation Prerequisites
Maintain minimum 50 mm vertical clearance above and below the populated Tricon rack for convection cooling. Elevated operating temperature shortens the service life of electrolytic capacitors and increases internal fault reporting.
Insert the module fully into the assigned rack slot and engage the locking latch to secure the edge connector to the backplane. Bond the SIS rack chassis to plant protective earth; poor earthing can introduce ground loops and voltage noise on the TMR backplane.
Buyer’s FAQ
Q: What HS tariff code applies to Triconex 2000417 for cross-border shipments? A: Primary HS classification falls under 850440 for static converters / industrial power supply assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on Triconex 2000417? A: Country of Origin is United States. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does Triconex 2000417 require pre-configuration before installation? A: No special firmware programming required. Module self-tests automatically run upon power-up; rack fault alarm thresholds are configured via Tricon SIS software after rack integration.
Q: Should I purchase all-risk shipping insurance for this spare Triconex power module? A: Yes. Transit shock can create hidden PCB microcracks or damage internal power components. Intermittent faults may only surface once the full SIS rack is energized under load. All-risk insurance covers full replacement value for transit handling defects.
