Description

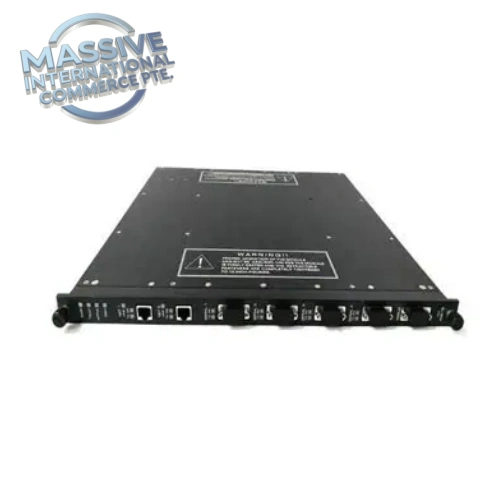

The Triconex 4201-3 is a Remote Extender Module (RXM) designed for the Tricon triple modular redundant (TMR) safety instrumented system (SIS), manufactured by Triconex (Schneider Electric). It delivers long-distance fiber-optic communication between the main Tricon controller chassis and remote I/O racks, extending safety control signals across plant areas while preserving the TMR fault-tolerant architecture. This unit is the remote-site variant of the 4200 series RXM family and uses multi-mode fiber links for remote I/O expansion.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model | 4201-3 |
| Module Type | Fiber Optic Remote Extender Module (RXM), Remote site |
| Fiber Type | Multi-mode fiber |
| Fiber Connector | ST type |
| Maximum Distance | Up to 2 km (1.2 miles) |
| Indicators | PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 LED status lights |
| System Architecture | TMR triple modular redundancy |
| Safety Rating | SIL 3 capable per IEC 61508 |
| Mounting | Installed inside Tricon remote RXM chassis |
| Operating Temperature | 0°C ~ +60°C |
| Power Source | Backplane powered from remote chassis power supply |
Key Features
- TMR fiber communication link for remote I/O racks in safety systems
- Multi-mode ST fiber interface for long-distance isolation between main and remote racks
- Comprehensive front-panel LED diagnostics for link, module health and fault status
- Built-in continuous self-testing and fault detection for communication paths
- Preserves full Tricon safety integrity across the fiber remote link
- Hot-swappable within the RXM chassis for online maintenance
- Isolated fiber transmission eliminates ground loop interference in industrial sites
Installation & Test Notes
- Power off the remote chassis before inserting or removing the 4201-3 module.
- Terminate multi-mode fiber cables to ST connectors; inspect fiber ends for dirt or scratches before connection.
- Seat the module securely in the RXM chassis slot and fasten the front retaining screw.
- Apply chassis power and observe LED indicators; verify PASS light is steady, check TX/RX activity.
- Validate communication between main Tricon controller and remote I/O using TriStation diagnostic software.
- Perform link fault simulation test to confirm system correctly triggers FAIL alarm upon fiber breakage.
- Maintain proper fiber bend radius to avoid signal attenuation.
Application
Used in oil & gas refineries, chemical plants, power generation and pipeline safety systems. It extends Tricon SIS remote I/O racks where field I/O must be located far away from the main control room cabinet, maintaining SIL3 safety integrity for emergency shutdown (ESD) and fire & gas (F&G) protection.
FAQ
Q: What is the difference between 4200-3 and 4201-3? A: 4200-3 is the primary RXM module installed in the main controller rack, while 4201-3 is the matching remote RXM module located at the remote I/O rack end of the fiber link.
Q: Can 4201-3 use single-mode fiber? A: No, 4201-3 is built for multi-mode fiber only. Single-mode variants are 4210-3 /4211-3.
Q: Is this module hot swappable? A: Yes, it supports hot-slot replacement in the RXM chassis without full system shutdown.
