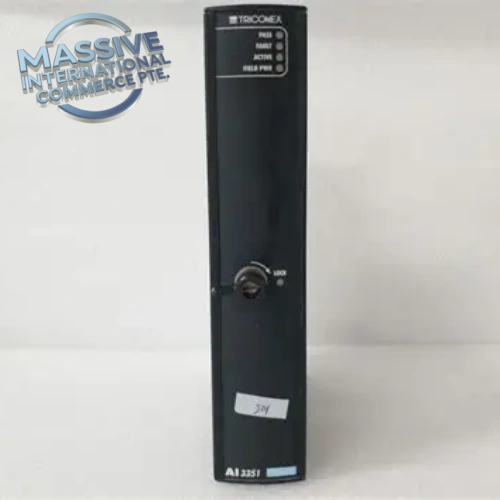

- Brand & Model: Triconex AI3351 (often miswritten A13351), Tricon TMR 32-channel analog input module
- Physical Dimensions: 10.2 in H × 6.3 in W × 1.8 in D
- Estimated Shipping Weight: 4.1 lb (packaged with anti-static foam and rigid export carton)
- What’s in the Box: AI3351 module assembly, front panel status LEDs, extraction latches, factory serial test certificate; terminal baseplate, field cabling sold separately.
Product Introduction (Structure A: Environmental hook)
This Triconex AI3351 (A13351) analog input module is designed for Tricon SIS safety racks in oil & gas, chemical and power plants, where long instrument loops, common-mode noise and cabinet temperature cycling threaten safety signal integrity. It acquires up to 32 channels of 4–20mA signals from field transmitters, leveraging triple modular redundant (TMR) architecture with three independent signal processing lanes and hardware median voting to eliminate single-point failure risks for safety instrumented functions (SIF).
Comprehensive continuous diagnostics detect wire break, short circuit, overrange and internal hardware degradation, reporting faults before loss of safety measurement. (TMR voting integrity and channel diagnostic coverage are mandatory review points for IEC61508 SIL third-party audits.) Conformal-coated PCB and reinforced galvanic isolation protect sensitive analog circuits from dust, humidity and electrical transients in control cabinets.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | Triconex Tricon TMR Safety Instrumented System (SIS) |
| Part Number | AI3351 (A13351 common typo) |
| Module Type | 32-channel analog input |
| Input Signal | 4–20 mA DC, 2–22mA operational range |
| Architecture | Triple Modular Redundancy (TMR), hardware median voting |
| Signal Update Rate | 16 Hz |
| Isolation | Reinforced galvanic isolation |
| Feature | Hot-swap capable; replace module online without rack shutdown |
| Power Supply | 24 VDC (±10%) from Tricon backplane |
| Operating Ambient Temp | -40 °C to +70 °C |
| Storage Temperature | -55 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 conformal-coated PCB, metal front panel with locking latches |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61508 SIL 3 capable, TÜV certified
- IEC 61511 process safety compliant
- NAMUR NE107 diagnostic standard
The UL/cUL listing verifies insulation and thermal ratings for continuous operation inside safety control cubicles. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Store the module sealed inside its original ESD shielding bag and shipping carton in a dry, temperature-stable warehouse. Electrostatic discharge can damage analog ADC circuits and TMR voting logic chips, resulting in measurement drift or intermittent channel failure after rack insertion.
Inspect spare modules every 24 months. For units stored longer than three years, perform powered pre-test with baseplate before installation; aging capacitors may introduce analog offset errors.
Do not stack heavy rack hardware on the module housing. Mechanical shock can crack PCB traces or damage edge connectors, triggering intermittent signal dropout or voting faults.
Physical Installation Prerequisites
Maintain a minimum of 40 mm clearance above and below the populated SIS rack for convection cooling. Elevated cabinet temperature increases analog measurement drift and shortens component service life. Insert the module fully into the assigned baseplate slot and engage the front retaining latches to fully seat the backplane connector. Use shielded twisted pair wiring for all 4–20mA field loops, and bond the SIS rack chassis to local protective earth to suppress common-mode noise.
Buyer’s FAQ
Q: What HS tariff code applies to Triconex AI3351 (A13351) for cross-border shipments? A: Primary HS classification falls under 853710 for safety system I/O assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on Triconex AI3351? A: Country of Origin is United States. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does AI3351 ship preloaded with firmware? A: Base firmware is factory pre-installed. Channel scaling, alarm thresholds and SIF signal configuration must be set via TriStation engineering software after physical installation.
Q: Should I purchase all-risk shipping insurance for this spare Tricon TMR analog input module? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive analog front-end circuits. Intermittent voting or channel faults may only manifest once field transmitters are connected. All-risk insurance covers full replacement value for transit handling defects.
