Description
Product Overview

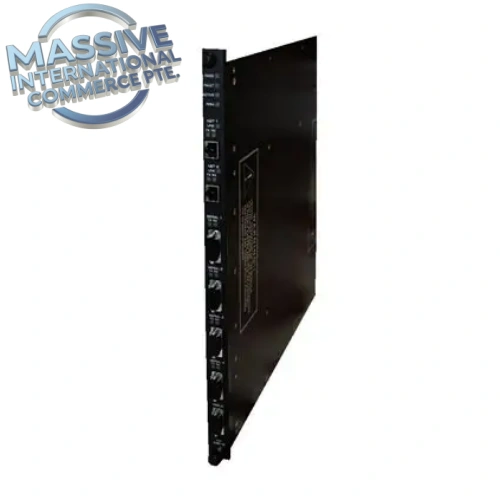

The Triconex 3664 is a triple modular redundant (TMR) dual digital output module built for Tricon safety instrumented systems (SIS). It provides 32 solid-state digital output points (organized as two banks of 16 channels) for safety-critical emergency shutdown, fire & gas, and turbine protection applications in oil & gas, refinery, power and petrochemical facilities. TMR fault-tolerant voting architecture masks single hardware faults while maintaining safe control of solenoid valves, safety relays and field actuators. The module integrates comprehensive channel diagnostics and supports hot-swap maintenance in Tricon qualified racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 3664 |
| Manufacturer | Triconex (Schneider Electric) |
| Product Type | TMR Dual Digital Output Module |
| Total Channels | 32 isolated DO points (2 × 16) |
| Output Type | Solid-state, self-protected 24VDC |
| Rated Field Voltage | 24 VDC |
| Backplane Interface | Tricon proprietary sync bus |
| Safety Certification | SIL 3 (IEC 61508 / IEC 61511), FM, CSA, ATEX |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Isolation | Channel-to-backplane galvanic isolation |
| Diagnostics | Wire break, short circuit, load fault detection per channel |
| Hot Swap | Yes, approved for controlled live rack maintenance |
| Compatible Software | TriStation 1131 |
| Application | ESD, F&G, turbine safety protection |
Key Features
- Triple Modular Redundant voting design; three independent logic slices validate output state to avoid unsafe operation from single component failure.
- 32 high-density solid-state outputs, grouped into two 16-channel banks, reducing rack space for large safety I/O layouts.
- Built-in per-channel diagnostics to detect open circuit, short circuit and load failures, reporting faults to TriStation for proof test and maintenance logging.
- Hot-swappable module design allows replacement without full SIS shutdown under approved lockout/tagout procedures.
- Short-circuit and overload self-protection for each output channel to limit field wiring faults from damaging the module or rack backplane.
- Suitable for direct driving of 24VDC safety solenoids and interposing relays in SIL3 safety loops.
Installation Notes
- Install only in Tricon TMR chassis with matching firmware revision compatible with 3664.
- Use certified Triconex termination assemblies for field wiring connections.
- Separate safety output cables from high-power AC wiring to reduce EMI interference.
- Verify field loop load resistance and current draw before commissioning; avoid exceeding per-channel rating.
- Always follow site SIS LOTO procedures, even during hot-swap maintenance.
- Complete proof testing after module replacement to validate all 32 channels and diagnostic functions.
Testing Procedure
- Visual inspection: Check housing, front panel LEDs, edge connector for bent pins, corrosion or physical damage.
- Insert module into Tricon rack, apply 24VDC rack power, confirm healthy status LED.
- Connect each output channel to a calibrated load and loop indicator.
- Force each channel ON/OFF via TriStation software and verify correct state switching at field terminals.
- Inject fault conditions (open wire, short circuit) to confirm channel diagnostic alarms trigger correctly.
- Record all channel pass/fail results, sign test log and tag module for stock or service deployment.
FAQ
Q: How many output channels does Triconex 3664 have? A: 32 digital output points arranged as two banks of 16 channels, solid-state 24VDC outputs.
Q: Is Triconex 3664 hot swappable? A: Yes, hot swap is permitted for Tricon SIS racks under controlled maintenance procedures.
Q: What safety level is the 3664 certified for? A: SIL3 per IEC 61508 / IEC 61511, for emergency shutdown and fire & gas safety loops.
Q: Can it directly drive high-current solenoid valves? A: It is designed for low-power 24VDC safety loads; larger solenoids often require interposing relays.
