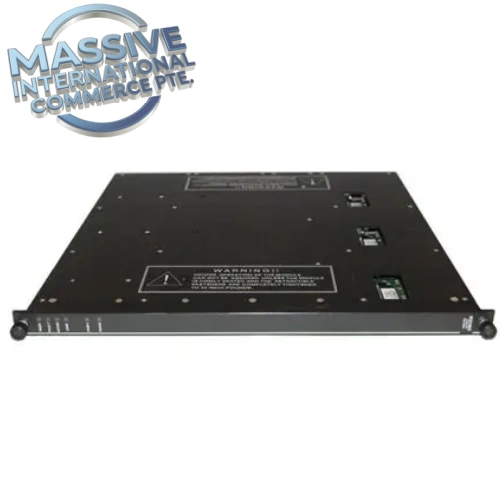

3805E (1-103-J MHI) | Triconex Schneider Electric Tricon AO Module NSFP Refurbished

Description

At-A-Glance Executive Brief

• Model: 3805E (1-103-J MHI)
• Brand: Triconex (Schneider Electric)
• Part Type: Tricon TMR 8-channel analog output (AO) module, MHI (Mitsubishi Heavy Industries) OEM specified variant marked 1-103-J for steam turbine SIS
• Lifecycle status: EOL legacy safety spare; stocked for brownfield thermal power MHI turbine SIS/Tricon rack maintenance
• System compatibility: Tricon TMR safety system chassis, MHI steam turbine safety instrumented system; delivers SIL3 rated 4–20mA analog output signals from Tricon SIS to turbine TSI, valve positioners and DCS for turbine safety control and trip interfaces
• Weight: ~2.14 kg

Technical Introduction

Failure of Triconex 3805E (1-103-J MHI) terminates all 4–20mA analog control outputs from the Tricon SIS to the MHI turbine field devices. Control signals to steam valve actuators, TSI setpoints and safety interlock analog interfaces are lost, leading to turbine control instability, loss of safety modulation and potential unit trip. Unplanned module failure can trigger forced power plant outage and safety risk for large steam turbine assets.

Triconex 3805E is a triple modular redundant (TMR) analog output module for Tricon safety systems. The suffix marking 1-103-J MHI denotes the custom OEM configuration for Mitsubishi Heavy Industries steam turbine safety cabinets. It features 8 optically isolated analog output channels sourcing 4–20mA current signals, with 12-bit DAC resolution. The TMR 2-of-3 voting architecture ensures high integrity safety output and fault tolerance, certified SIL3 per IEC61508. The module converts internal Tricon safety logic values into standard 4–20mA analog signals for turbine control valves, TSI monitoring setpoints and DCS interface. It supports hot-swap replacement inside the Tricon rack without full system shutdown. Widely deployed on MHI large steam turbine SIS in coal-fired and combined-cycle power plants. Power plant reliability teams stock Triconex 3805E (1-103-J MHI) to restore turbine safety analog control functions.

Note: Distinction reminder: Triconex 3805E is SIS analog output card for Tricon TMR; Bently Nevada 3805E is vibration monitor for 3800 TSI rack, two separate products sharing same base part number.

• Best Suited For
  • MHI steam turbine SIS Tricon TMR safety racks
  • SIL3 safety 4-20mA analog control outputs for turbine valves, TSI and DCS interface
  • Direct drop-in replacement for existing Triconex 3805E (1-103-J MHI) MHI OEM safety AO hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm MHI cabinet drawing, full marking 1-103-J, Tricon firmware version, channel scaling, signal range and logic configuration before replacement; OEM configuration mismatch will cause incorrect analog output values and turbine control hazards.
• Implement safety bypass and lockout/tagout for turbine control loops before removal. Although Triconex 3805E supports hot swap, evaluate turbine safety risk carefully before live swap on running unit.
• Inspect field 4–20mA loop wiring, loop impedance, terminal blocks and rack backplane connectors; high loop resistance and grounding faults are common causes of analog signal drift or bad outputs.
• After installation, verify Tricon backplane handshake, module identification, channel calibration, 4–20mA output accuracy, TMR fault voting diagnostics. Validate signal transmission to turbine valves and TSI/DCS, clear faults and remove safety bypass before returning turbine control online.
• ESD protection required while handling Tricon TMR modules.
• Perform periodic loop impedance testing and module health diagnostics per MHI turbine SIS maintenance schedule.

Adaptive QA & Testing Protocol

Each Triconex 3805E (1-103-J MHI) module is bench tested on Tricon TMR test chassis. We verify rack power-up, TMR voting integrity, backplane communication, 8-channel 4–20mA output calibration across full range, load test at 750Ω maximum load, channel isolation and fault diagnostic functions. PCB, edge connector, front panel indicators and solder joints are visually inspected for burn marks, corrosion or thermal damage. Full test reports are available upon request.

Buyer’s FAQ

Q: What is Triconex 3805E (1-103-J MHI) used for? A: It is a Tricon TMR SIL3 8-channel analog output module, MHI OEM specified variant marked 1-103-J. It outputs 4–20mA control signals from Triconex SIS to MHI steam turbine control valves, TSI and DCS for safety-related turbine modulation.

Q: What warranty applies for refurbished and NSFP Triconex 3805E (1-103-J MHI)? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, field loop surge damage, scaling/configuration mismatch, improper safety bypass and incorrect hot-swap execution.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory depleted, we source surplus Triconex 3805E modules matching MHI 1-103-J OEM configuration.

Q: Can Triconex 3805E be hot swapped? A: Yes, hot swap is supported on Tricon TMR racks. Safety bypass for affected turbine control loops must be implemented before module extraction.

Q: Is Triconex 3805E still in production? A: No, Tricon classic series including 3805E is end-of-life legacy SIS hardware, succeeded by newer Triconex safety platforms.
