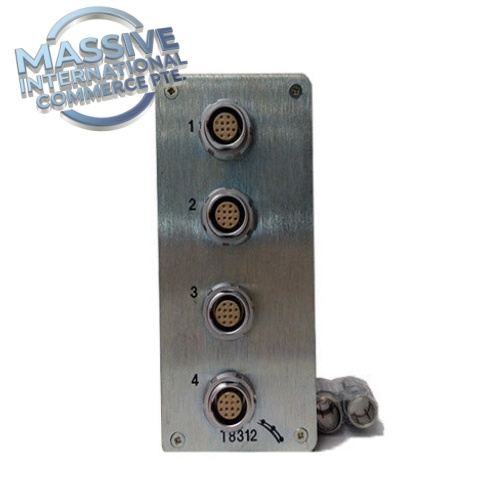

- Brand & Model: ICS Triplex (Rockwell Automation) T8312-4, Expander Interface Adapter Unit
- Physical Dimensions: 5.1 in H × 2.4 in W × 4.5 in D
- Estimated Shipping Weight: 1.43 lb (packaged with anti-static foam inside rigid export carton)
- What’s in the Box: T8312-4 expander interface adapter unit, 4 × 12-pin ODU connectors, 96-way C-type backplane connector, metal enclosure, release latch, factory serial test certificate; expander chassis, expander bus cables, T8311 interface module sold separately.
Product Introduction (Structure A: Environmental hook)
ICS Triplex T8312-4 is the 4-port TMR expander interface adapter unit for Rockwell Trusted T8000 safety control platform, installed on the rear of the Trusted controller chassis for oil & gas, petrochemical and power plant safety systems. It is engineered to withstand continuous mechanical vibration, electrical transients, heavy EMI interference and wide temperature fluctuations that degrade ordinary interface adapters. This adapter bridges the controller chassis T8311 expander interface module and up to four remote Trusted expander chassis via dedicated expander bus cables. It transmits high-speed TMR safety data between main controller and distributed I/O expander racks, enabling system I/O capacity expansion. The expander bus runs at 250 Mbps, maintaining triple modular redundant data integrity for SIL3 safety applications. Hardware self-diagnostics monitor bus link and adapter health, reporting communication faults to the Trusted processor. TMR bus voting integrity and fault detection coverage are mandatory audit points for process safety reviews. The compact metal housing clips directly to chassis rear connectors for quick installation and removal.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | ICS Triplex Trusted T8000 TMR Safety System |
| Part Number | T8312-4 (4 expander chassis ports) |
| Product Type | Expander Interface Adapter Unit |
| Max Supported Expander Chassis | 4 units |
| Connectors | 4 × 12-pin ODU, 96-way C-type backplane connector |
| Expander Bus Speed | 250 Mbps |
| Operating Ambient Temp | 0 °C ~ +60 °C |
| Storage Temperature | -25 °C ~ +70 °C |
| Relative Humidity (operating) | 10% ~ 95%, non-condensing |
| Mounting | Clip-on rear of Trusted controller chassis |
| Construction | Compact metal enclosure, industrial PCB assembly |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61508 Functional Safety (SIL3 capable)
- ATEX / IECEx for hazardous area applications
- ISA-S71.04 G3 environmental contaminant rating
- RoHS compliant for applicable batches
UL / IEC 61508 certification verifies safety communication integrity and thermal ratings for continuous long-run safety cabinet operation. Serial-number specific certificates should be validated per individual unit.
Long-Term Storage & Asset Preservation Guide
Store the T8312-4 adapter sealed inside original ESD shielding bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage high-speed differential bus circuits and connector interface chips, leading to intermittent expander bus dropout, TMR data mismatch or loss of remote I/O communication after chassis installation. Inspect spare units every 24 months. For adapters stored more than three years, perform continuity and link communication bench test before commissioning; connector contact aging may degrade signal integrity. Do not stack heavy cabinet hardware on the adapter enclosure. Mechanical impact can damage ODU connectors or PCB traces and trigger intermittent expander communication faults.
Physical Installation Prerequisites
Reserve sufficient rear chassis clearance for cabling and heat dissipation. Elevated cabinet temperature increases signal drift and accelerates component aging. Clip T8312-4 onto the rear connector assembly of Trusted controller chassis, securely seat the 96-way backplane connector. Use matched TC-31x series expander bus cables to connect ODU ports to each remote expander chassis. Separate expander bus cables from high-power wiring to minimize EMI interference. Bond safety rack chassis to protective earth. Complete power-up, bus link test and TMR system health verification after physical installation.
Buyer’s FAQ
Q: What HS tariff code applies to ICS Triplex T8312-4 for cross-border shipments? A: Primary HS classification falls under 853710 for safety system interface adapter assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on ICS Triplex T8312-4? A: Country of Origin is United Kingdom. This marking appears on the unit nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: What is the difference between T8312-4 and T8312-7? A: T8312-4 supports up to 4 expander chassis; T8312-7 supports up to 7 expander chassis. They are mechanically similar but have different port populations and are not interchangeable in system configuration.
Q: Should I purchase all-risk shipping insurance for this spare ICS Triplex T8312-4 adapter? A: Yes. Transit shock can damage delicate ODU connectors and high-speed bus circuits. Intermittent expander link faults may only manifest after chassis mounting and system power-on. All-risk insurance covers full replacement value for transit handling defects.
