Description
Product Overview

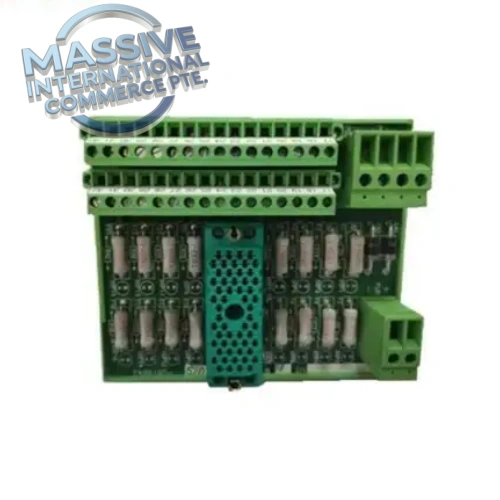

Triconex 3000520-390 is a field termination and safety interface module for Tricon TMR Safety Instrumented System (SIS), under Schneider Electric Triconex brand. It provides screw terminal blocks for safe wiring termination between Triconex I/O modules and field sensors / solenoid actuators. This unit implements signal conditioning and galvanic isolation, protecting the TMR safety logic solver from field surge interference. Widely deployed in oil & gas, petrochemical and power generation safety shutdown systems. It is a critical spare for maintenance and retrofit of Tricon SIS racks.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3000520-390 |
| Brand | Triconex (Schneider Electric) |
| Type | Field Termination / Safety Interface Module |
| Compatible Platform | Tricon TMR Safety Instrumented System (SIS) |
| Supply Voltage | 24V DC |
| Power Consumption | Max 2W |
| Safety Level | SIL3 certified to IEC 61508 |
| Isolation | Galvanic isolation between field side and backplane |
| Housing | Phoenix Contact style terminal base, DIN / rack mount |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Net Weight | ~1.2 kg |
| Certifications | CE, SIL3 |
| Product Status | OEM discontinued, aftermarket legacy spare |
Key Features
- Dedicated terminal board to terminate field discrete signals for Tricon TMR safety system
- Built-in surge suppression and galvanic isolation to reduce EMI and transient damage to safety I/O cards
- SIL3 safety integrity level for critical emergency shutdown (ESD) applications
- Front terminal blocks for convenient field wiring and loop testing without removing I/O module
- Onboard circuit diagnostics to detect wiring fault, open circuit and short circuit conditions
- Compact rack-mount form factor matching standard Tricon chassis layout
- Supports redundant signal paths for high availability safety control loops
Installation & Testing Notes
- Mount 3000520-390 into Tricon SIS rack, align with corresponding I/O module
- Route field sensor and actuator wiring to screw terminals strictly following safety loop drawings
- Verify 24V DC supply and protective equipment grounding before energizing field circuits
- After power-up, run system diagnostic scan via Triconex engineering workstation
- Perform loop test for each field point to validate signal transmission and fault detection
- This module supports hot swap in Tricon SIS rack; lock safety trip interlocks before replacement
- After replacement, execute full safety logic proof test before returning process to service
- Inspect terminal screw tightness periodically in high vibration plant environments
FAQ
Q: What system is 3000520-390 used for? A: Triconex Tricon triple modular redundant SIS safety instrumented system.
Q: What is the main function? A: Field signal termination, surge protection and isolation between Tricon I/O modules and field safety devices.
Q: What safety certification does it have? A: SIL3 per IEC61508 for emergency shutdown safety loops.
Q: Is 3000520-390 hot swappable? A: Yes, hot swap is supported within Tricon rack, safety interlock must be locked before replacement.
Q: Typical application industries? A: Oil & gas refineries, chemical plants and power plant ESD safety protection systems.
