Description
Product Overview

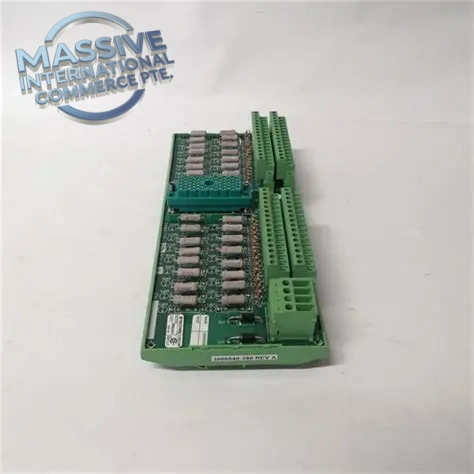

The Triconex 7400166-390, also referenced as model 2652-5, is a digital output termination panel/assembly built for Triconex TMR safety instrumented systems (SIS). It serves as the field wiring interface between the Triconex I/O module and on-site actuators, relays and solenoid valves. This termination board routes, terminates and isolates digital output signals from the Tricon safety controller to field devices. Widely deployed in oil & gas, petrochemical and power generation plants, it is a critical spare part for maintenance of legacy Triconex SIS installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 7400166-390 |
| Alternate Model | 2652-5 |
| Brand | Triconex (Schneider Electric) |
| Type | Digital Output Termination Assembly |
| Compatible System | Triconex Tricon SIS TMR Safety System |
| Signal Type | Digital Output |
| Mounting | DIN rail mount |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Isolation | Galvanic isolation between backplane and field wiring |
| Dimensions | 114.3 × 196.85 × 107.95 mm |
| Net Weight | 0.5 kg |
| Safety Rating | Supports SIL3 TMR system architecture |
| Certifications | CE, UL |
Key Features
- Dedicated termination assembly for Triconex digital output modules
- Screw terminal blocks for secure field wiring connection
- Built-in galvanic isolation to suppress field noise and protect system I/O
- Modular DIN rail mounting design for cabinet installation
- Supports triple modular redundant voting logic for SIL3 safety loops
- Simplifies maintenance; field wiring stays intact when replacing the I/O module
- Robust industrial PCB construction for continuous 24/7 process operation
Installation & Testing Notes
- Mount the termination assembly on DIN rail inside the control cabinet
- Route field actuator wiring to the screw terminals; verify wiring against loop drawings
- Check cable shielding and grounding to reduce EMC interference
- Confirm no short circuit between field wiring before energizing
- After installation, perform channel loop test from SIS controller to field device
- This termination assembly does NOT support hot swap. Isolate all field power before removal.
- Inspect terminals periodically for loose connections in high-vibration environments
FAQ
Q: What system is 7400166-390 used with? A: Triconex Tricon TMR Safety Instrumented System (SIS).
Q: What is the alternate part number? A: 2652-5, same termination assembly.
Q: Is this the I/O module itself or a terminal board? A: It is the digital output termination panel / wiring assembly for the DO module.
Q: What safety level does it support? A: Designed to work within SIL3 certified Triconex TMR safety loops.
