Description
Unboxing & Physical Snapshot

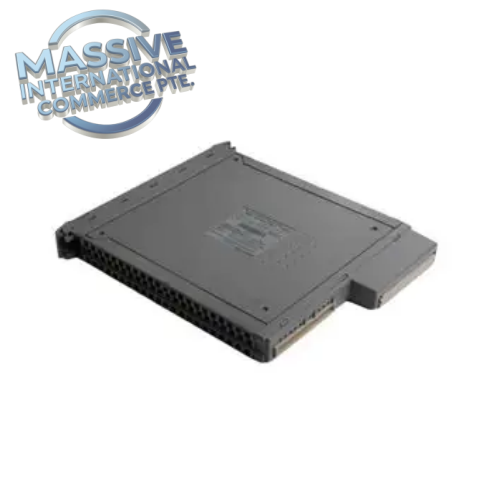

- Brand & Model: ICS Triplex (Rockwell Automation) T8461C, TMR Digital Output Module
- Physical Dimensions: 11.75 in H × 1.25 in W × 7.375 in D
- Estimated Shipping Weight: 2.53 lb (packaged with anti-static foam inside rigid export carton)
- What’s in the Box: T8461C TMR digital output module, front status LEDs, factory serial test certificate; Trusted backplane, field termination assemblies, inter-module bus cables sold separately.
Product Introduction (Structure A: Environmental hook)
ICS Triplex T8461C is a conformal-coated 40-channel TMR digital output module for the Rockwell Trusted T8000 safety control platform, deployed in oil & gas, petrochemical and power plant safety cabinets. It is engineered to withstand continuous mechanical vibration, electrical surges, heavy EMI interference and wide temperature fluctuations that degrade ordinary safety I/O modules. This module implements triple modular redundancy with 2-out-of-3 (2oo3) hardware voting to drive field final elements such as solenoid valves, relays and motor trip circuits for ESD (Emergency Shutdown) and F&G (Fire & Gas) safety systems. It supports hot-swap replacement without system shutdown. Comprehensive per-channel diagnostics detect short-circuit, open-circuit and internal hardware faults and report fault status to the Trusted controller. TMR voting integrity, fault detection coverage and functional safety compliance are mandatory audit points for process safety reviews. Conformal coating protects PCB components from corrosive gas, dust and humidity in harsh industrial control cubicles.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | ICS Triplex Trusted T8000 TMR Safety System |
| Part Number | T8461C (Conformal Coated Version) |
| Product Type | TMR Digital Output Module |
| Channels | 40 digital output channels |
| Supply Voltage | 20–32 VDC backplane power |
| Channel Rating | 18–58 VDC, 0.75A per channel; 6A per power group |
| Redundancy | Triple Modular Redundant (TMR), 2oo3 voting |
| Feature | Hot-swappable, per-channel fault diagnostics |
| PCB Treatment | Conformal coating (suffix C = coated) |
| Operating Ambient Temp | 0 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Relative Humidity (operating) | 5% ~ 90%, non-condensing |
| Mounting | Single slot vertical mount in Trusted T8100/T8300 chassis |
| Construction | Rugged industrial multi-layer PCB, TMR circuit architecture |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- ATEX / IECEx for hazardous area applications
- IEC 61508 Functional Safety (SIL3 capable)
- ISA-S71.04 G3 environmental contaminant rating
- RoHS compliant for applicable batches
UL / IEC 61508 certification verifies safety integrity and thermal ratings for continuous long-run safety cabinet operation. Serial-number specific certificates should be validated per individual unit.
Long-Term Storage & Asset Preservation Guide
Store the T8461C module sealed inside original ESD shielding bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage TMR voting circuits and output drive components, leading to incorrect field actuation, silent channel faults or loss of safety trip function after rack installation. Inspect spare units every 24 months. For modules stored more than three years, perform bench power-up, channel continuity and fault simulation test before commissioning; component aging may degrade output drive and diagnostic performance. Do not stack heavy cabinet hardware on the module assembly. Mechanical impact can crack PCB traces or damage backplane edge connectors and trigger intermittent safety output faults.
Physical Installation Prerequisites
Reserve sufficient airflow clearance inside the Trusted rack for heat dissipation. Elevated cabinet temperature increases component drift and accelerates aging. Insert T8461C fully into the designated Trusted rack slot and seat the backplane connector securely; hot-swap can be performed under controlled conditions. Separate field output wiring from high-power cables to minimize EMI interference. Bond safety rack chassis to protective earth. Complete safety logic download, channel loop test and voting health verification after physical module installation.
Buyer’s FAQ
Q: What HS tariff code applies to ICS Triplex T8461C for cross-border shipments? A: Primary HS classification falls under 853710 for safety system digital output module assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on ICS Triplex T8461C? A: Country of Origin is United Kingdom. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: What does suffix C in T8461C mean? A: C stands for conformal coating, suitable for corrosive / high humidity environments. T8461 (non-coated) and T8461C are electrically identical but not interchangeable for harsh site environments.
Q: Should I purchase all-risk shipping insurance for this spare ICS Triplex T8461C safety module? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive TMR voting and output drive circuits. Intermittent safety channel faults may only manifest after rack wiring and power-on. All-risk insurance covers full replacement value for transit handling defects.
