Description
At-A-Glance Executive Brief

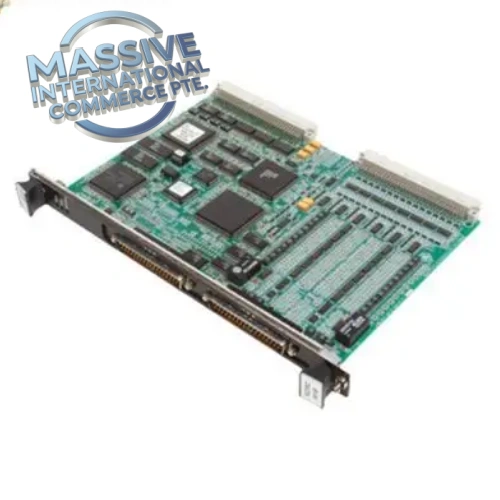

- Model: IS200ERSCG1A (ERSC, common revision IS200ERSCG1AAA)
- Brand: GE / GE Vernova
- Part Type: Exciter Regulator Static Converter Board (ERSC)
- Lifecycle status: OEM obsolete; stocked for brownfield GE EX2100 static excitation cabinet retrofits
- System compatibility: GE Speedtronic Mark VI, EX2100 Excitation System, works with ERDD, ERBP/ERRB backplanes
- Weight: 3.2 kg
Technical Introduction
Failure of the IS200ERSCG1A static converter board terminates PWM power conversion for generator field excitation, leading to loss of generator voltage and reactive power regulation, and potential generator trip. The IS200ERSCG1A ERSC board is the core power conversion board in GE EX2100 excitation systems. It receives low-level firing commands from the Mark VI controller and converts AC input into precisely regulated PWM DC output for generator field winding excitation. The board integrates six IGBT power switches, snubber protection circuits, voltage and current transducers for field measurement, and fiber-optic gate signal interfaces. It continuously samples field voltage and current, feeds measurement values and fault diagnostics back to Mark VI turbine controller and plant DCS. It supports both simplex and redundant excitation bridge configurations. Thermal, overcurrent and overvoltage protection are embedded on the PCB. Combined-cycle, steam and hydro power plants maintain spare ERSC boards to reduce forced outage risk while migrating legacy EX2100 excitation hardware.
- Best Suited For
- GE EX2100 generator static excitation power conversion cubicles
- Gas, steam and hydro generator field excitation PWM power conversion and field monitoring
- Direct drop-in replacement for existing GE IS200ERSCG1A ERSC excitation hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IS200ERSCG1A (ERSC, rev IS200ERSCG1AAA) |
| Platform | GE EX2100 Excitation, Mark VI |
| Main Function | AC to PWM DC static power conversion, generator field excitation, field V/I measurement, power device protection |
| AC Input | 3-phase, up to 600VAC, 50/60Hz |
| DC Output | 50A continuous, 150A peak (10s) |
| Power Topology | 6-pulse full controlled bridge with IGBT modules |
| Sensing | Field voltage, field current, board temperature |
| Interface | Fiber optic gate pulse input, analog status feedback to controller |
| Operating Modes | Simplex / Redundant bridge configuration |
| Mounting | Rack mount inside EX2100 power conversion cabinet |
| Dimensions | 350 × 250 × 80 mm |
| Weight | 3.2 kg |
| Environmental Details | Please refer to the OEM datasheet for complete environmental tolerances. |
Field Engineer’s Tech Notes
- Verify board revision and simplex/redundant cabinet architecture before replacement. Redundant bridge installations require matching hardware revision and firmware.
- This board handles high AC and DC power circuits. Execute full lockout/tagout, discharge all capacitive energy and verify zero energy before card removal.
- ESD protection is mandatory when handling the PCB; static discharge can damage IGBT gate circuits and measurement transducers.
- After replacement, perform excitation loop checkout, field voltage/current calibration and full trip/de-excitation test before returning generator online.
- Fiber optic gate cables must be inspected for scratches or contamination; poor fiber quality causes missed firing pulses and excitation instability.
Adaptive QA & Testing Protocol
Each IS200ERSCG1A board is bench tested on EX2100 excitation test fixture. We apply simulated 3-phase AC supply and fiber firing commands to validate PWM DC output, output current/voltage regulation and overcurrent/overvoltage protection. Field measurement channels are calibrated. Temperature monitoring and fault alarm reporting to Mark VI controller are validated. Fiber optic receiver sensitivity is checked. PCB visual inspection, solder joint, IGBT and connector integrity are performed. Full test reports or bench test video clips are available upon request.
Buyer’s FAQ
Q: What is GE IS200ERSCG1A ERSC used for? A: It is the Exciter Regulator Static Converter board for GE EX2100 excitation systems. It converts three-phase AC power to regulated PWM DC current to control generator field winding and maintain generator terminal voltage.
Q: What warranty applies for refurbished and NSFP IS200ERSCG1A? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, high-voltage transients, contaminated fiber links and improper excitation configuration.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus GE EX2100 ERSC boards.
Q: Is IS200ERSCG1A hot-swappable? A: Not hot-swappable. The excitation system and generator must be fully isolated, de-energized and capacitors discharged before board replacement.
