Description
Unboxing & Physical Snapshot

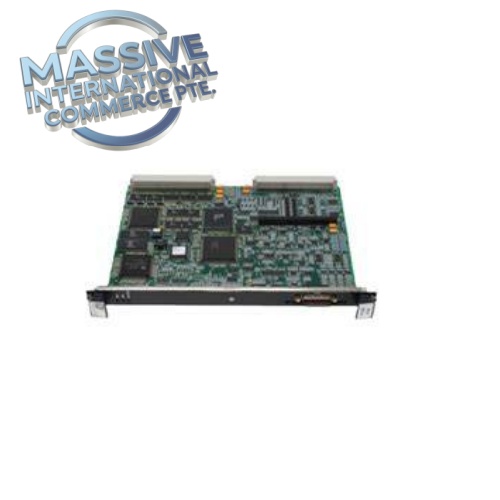

- Brand & Model: GE IS200VTURH1BAA, VTUR-H1B Turbine Control Card
- Physical Dimensions: 10.24 in × 7.95 in × 0.83 in
- Estimated Shipping Weight: 0.93 lb (packaged with anti-static foam inside rigid export carton)
- What’s in the Box: IS200VTURH1BAA PCB assembly, front edge connectors, test points, status indicators, factory serial test certificate; Mark V backplane, I/O modules, power supply sold separately.
Product Introduction (Structure A: Environmental hook)
GE IS200VTURH1BAA is a core VTUR turbine governing board for GE Speedtronic Mark V Triple Modular Redundant (TMR) turbine control systems, widely deployed in power plant turbine control cabinets. It is engineered to withstand continuous mechanical vibration, voltage transients, heavy EMI interference and wide temperature fluctuations that degrade ordinary industrial control PCBs. This board performs critical real-time turbine governing functions including speed regulation, generator load control, valve position command output and turbine interlock protection logic for gas turbines and steam turbines. It communicates with other Mark V rack modules via the rack backplane under TMR architecture to deliver high availability for prime mover control. Onboard continuous diagnostics monitor hardware health, signal integrity and backplane communication, triggering fault alarms once abnormalities are detected. TMR redundancy performance and protection response timing are mandatory audit points for power plant machinery safety reviews. Conformal coated PCB protects electronic components from dust, humidity and airborne contaminants inside control cubicles.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | GE Speedtronic Mark V TMR Turbine Control |
| Part Number | IS200VTURH1BAA (VTUR-H1B) |
| Product Type | Turbine Governing & Protection Control PCB |
| Main Functions | Speed control, load regulation, valve drive command, turbine interlock protection |
| Architecture | Triple Modular Redundant (TMR) compatible |
| Interface | Mark V rack backplane edge connectors |
| PCB Treatment | Conformal coating |
| Operating Ambient Temp | 0 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Relative Humidity (operating) | 5% ~ 95%, non-condensing |
| Mounting | Plug-in card for Mark V rack chassis |
| Construction | Multi-layer industrial PCB with high-reliability SMD components |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61131 Industrial control standard
- ISA-S71.04 G3 environmental contaminant rating
- RoHS compliant for applicable production batches
UL certification verifies insulation and thermal ratings for continuous long-term turbine cabinet operation. Serial-number specific certificates should be validated per individual unit.
Long-Term Storage & Asset Preservation Guide
Store the control board sealed inside original ESD shielding bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage CPU, memory and backplane interface circuits, leading to governing instability, backplane communication dropout or loss of turbine control after rack installation. Inspect spare units every 24 months. For boards stored more than three years, perform bench continuity and backplane communication test before commissioning; component aging may degrade signal integrity. Do not stack heavy cabinet hardware on the PCB assembly. Mechanical impact can crack PCB traces or damage edge connectors and trigger intermittent turbine control faults.
Physical Installation Prerequisites
Reserve sufficient airflow clearance inside the Mark V rack for heat dissipation. Elevated cabinet temperature increases control drift and accelerates component aging. Insert IS200VTURH1BAA fully into the designated Mark V rack slot and seat edge connectors securely. Separate turbine sensor and control wiring from high-power cables to minimize EMI interference. Bond control rack chassis to protective earth. Complete rack power-up, logic download and TMR channel synchronization after physical board installation.
Buyer’s FAQ
Q: What HS tariff code applies to GE IS200VTURH1BAA for cross-border shipments? A: Primary HS classification falls under 853710 for industrial turbine control board assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on GE IS200VTURH1BAA? A: Country of Origin is United States. This marking appears on the board silkscreen and nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Is IS200VTURH1BAA interchangeable with IS200VTURH2B? A: No. IS200VTURH1BAA and IS200VTURH2B have different firmware and component populations, they are not drop-in interchangeable, must match the original Mark V rack part number.
Q: Should I purchase all-risk shipping insurance for this spare GE Mark V turbine control board? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive logic and backplane circuits. Intermittent control faults may only manifest after rack wiring and power-on. All-risk insurance covers full replacement value for transit handling defects.
