Description
Unboxing & Physical Snapshot

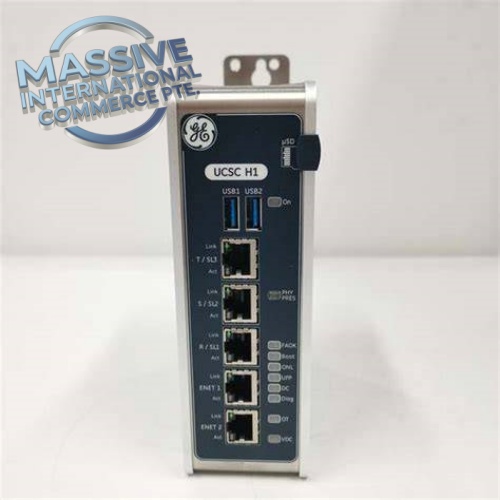

- Brand & Model: GE Vernova IS420UCSCH1B, UCSC Quad-Core Controller
- Physical Dimensions: 8.03 in H × 5.99 in D × 2.17 in W
- Estimated Shipping Weight: 2.93 lb (packaged with anti-static foam inside heavy-duty export carton)
- What’s in the Box: IS420UCSCH1B controller unit, front-panel Ethernet ports, status LEDs, factory serial test certificate; I/O packs, IONet cables, ControlST software license sold separately.
Product Introduction (Structure A: Environmental hook)
GE Vernova IS420UCSCH1B is a high-performance quad-core UCSC controller for Mark VIe and Mark VIeS turbine/generator control platforms, engineered for power generation control cabinets. It reliably operates under continuous vibration, electrical transients, heavy EMI and wide temperature fluctuations that degrade conventional PLC controllers. This controller acts as the central real-time processing unit for gas turbines, steam turbines and generator auxiliary controls. It executes deterministic control logic, manages IONet I/O packs, handles interlock and protection algorithms, and communicates with HMI, DCS and remote diagnostic systems. Powered by QNX Neutrino real-time OS, it supports simplex, dual redundant architectures and integrates Embedded Field Agent (EFA) for Predix cloud diagnostics. It features 6 Ethernet ports (5 front-panel, 1 dedicated Predix port) for redundant IONet, EtherCAT and network communication. Real-time control determinism, fault tolerance and safety compliance are mandatory audit points during power plant machinery safety reviews. Fanless solid-state design improves vibration resistance for continuous critical service.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | GE Vernova Mark VIe / Mark VIeS |
| Part Number | IS420UCSCH1B |
| Product Type | UCSC Quad-Core Main Controller |
| CPU | AMD GX-412HC Quad-Core, 1.2 GHz |
| Memory | 4GB DDR3 ECC SDRAM |
| Non-volatile Memory | NVSRAM for program variables, forces, totalizers |
| Operating System | QNX Neutrino 6.5 / 7.1 |
| Communication | 6 × Ethernet (5 front panel IONet, 1 Predix port), Embedded EtherCAT, Profinet |
| Power Supply | 24/28VDC nominal, max 31W |
| Redundancy Mode | Simplex / Dual redundancy |
| Operating Ambient Temp | -30 °C ~ +65 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Relative Humidity (operating) | 5% ~ 95%, non-condensing |
| Mounting | DIN rail mount, fanless design |
| Construction | Rugged metal enclosure, industrial surface mount PCB |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61508 functional safety (Mark VIeS safety configuration)
- ISA-S71.04 G3 environmental contaminant rating
- RoHS compliant for applicable production batches
UL certification verifies insulation and thermal ratings for continuous long-term turbine control cabinet operation. Serial-number specific certificates should be validated per individual unit.
Long-Term Storage & Asset Preservation Guide
Store the controller sealed inside original ESD shielding bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage CPU, ECC memory and Ethernet transceivers, leading to control logic crash, IONet communication dropout or loss of turbine control after rack installation. Inspect spare units every 24 months. For controllers stored more than three years, perform bench power-up, firmware verification and network communication test before commissioning; component aging may degrade memory and network performance. Do not stack heavy cabinet hardware on the controller enclosure. Mechanical impact can crack PCB traces or damage Ethernet connectors and trigger intermittent IONet communication faults.
Physical Installation Prerequisites
Reserve sufficient airflow clearance around the DIN rail mounted chassis for heat dissipation. Elevated cabinet temperature increases control drift and accelerates component aging. Mount IS420UCSCH1B on DIN rail in Mark VIe control rack. Separate IONet Ethernet cables from high-power wiring to minimize EMI interference. Bond control rack chassis to protective earth. Download control application, configure IONet network, redundancy settings and HMI communication parameters via GE ControlST software after physical installation.
Buyer’s FAQ
Q: What HS tariff code applies to GE IS420UCSCH1B for cross-border shipments? A: Primary HS classification falls under 853710 for industrial turbine controller assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on GE IS420UCSCH1B? A: Country of Origin is United States. This marking appears on the unit nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: What is the difference between IS420UCSCH1B and IS420UCSCS2A? A: IS420UCSCH1B is general-purpose Mark VIe UCSC quad-core controller; IS420UCSCS2A is Mark VIeS dedicated safety controller with different memory and safety firmware, they are not interchangeable.
Q: Should I purchase all-risk shipping insurance for this spare GE Mark VIe controller? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive CPU and network circuits. Intermittent IONet or control faults may only manifest after rack wiring and power-on. All-risk insurance covers full replacement value for transit handling defects.
