Unboxing & Physical Snapshot

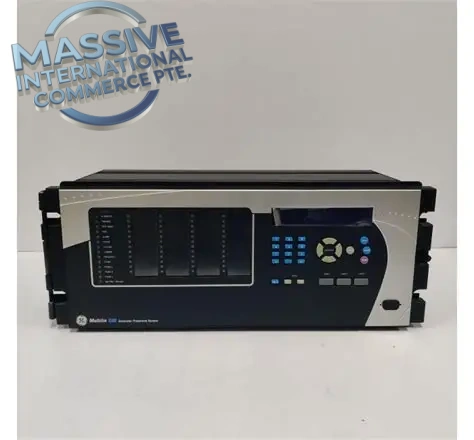

- Brand & Model: GE Multilin G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C, UR Universal Relay Generator Management Relay
- Physical Dimensions: 17.2 in W × 5.2 in H × 10.0 in D
- Estimated Shipping Weight: 12.5 lb (packaged with anti-static foam and heavy-duty shock-resistant export carton)
- What’s in the Box: G60 relay main unit, front graphical LCD panel, status LED indicators, mounting hardware, factory serial test certificate; CT/VT wiring, fiber communication cables and terminal blocks sold separately.
Product Introduction (Structure A: Environmental hook)
The GE Multilin G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C is part of GE’s UR universal relay platform, built for generator protection cubicles in thermal, gas and hydroelectric power plants. It is engineered to operate reliably in environments with heavy electromagnetic interference, frequent load transients, temperature cycling and mechanical vibration that degrade conventional protection devices. This relay integrates comprehensive generator protection, real-time electrical metering, programmable control logic, sequence-of-event recording and COMTRADE fault oscillography within a single rack-mounted chassis.
It implements critical generator protection functions: stator differential protection, 100% stator earth fault, loss-of-excitation, reverse power, over/undervoltage, overcurrent and thermal overload protection. The embedded FlexLogic engine allows users to build custom interlock and control schemes. High-resolution disturbance recording and microsecond time-stamped SOE logs support post-fault root-cause analysis. Protection element validation, fault recording capability and IEC 61850 communication are key audit items during power system safety and compliance reviews. Heavy EMI shielding and rugged hardware maintain measurement integrity in high-voltage generator control rooms.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | GE UR Universal Relay Platform |
| Part Number | G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C |
| Device Type | Generator Management / Multifunction Protective Relay |
| Mounting | 19-inch horizontal rack mount |
| CT/VT Option F8L | 4 CT + 4 VT inputs with enhanced channel diagnostics |
| Main Protection Functions | Stator differential, 100% stator ground fault, loss of excitation, reverse power, overcurrent, over/under voltage, thermal protection, synchrocheck |
| Communication | IEC 61850, Modbus TCP, DNP3, IRIG-B, PTP/SNTP time synchronization |
| Event & Fault Recording | 1024 time-tagged SOE events, up to 64 COMTRADE oscillography records |
| Power Supply (H67) | Wide-range 125/250V AC/DC |
| Operating Ambient Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | Metal rack chassis, color graphical LCD front panel, pluggable modular backplane modules |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 60255 electrical relay standard
- IEC 61850 compliant
- IEEE C37.102 generator protection standard
- RoHS compliant for qualified production batches
The UL/cUL certification validates insulation and thermal performance for continuous long-term operation in generator protection cubicles. Specific lot certificates should be verified against the unit serial number.
Long-Term Storage & Asset Preservation Guide
Store the relay sealed inside its original anti-static bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage DSP sampling circuits, CPU and communication transceivers, leading to protection misoperation or network communication loss after rack installation.
Inspect spare units every 24 months. For relays stored more than three years, perform powered pre-commissioning testing and backup battery inspection; degraded backup batteries can result in lost event timestamps and configuration corruption.
Do not stack heavy cabinet hardware on the relay front panel. Mechanical shock can crack PCB traces or damage rear terminal connectors and cause intermittent CT/VT measurement faults.
Physical Installation Prerequisites
Reserve minimum 40 mm clearance at the top and bottom of the 19-inch rack for convection cooling. Elevated cabinet temperature increases measurement drift and accelerates component aging. Slide the relay fully into rack rails and tighten front panel mounting screws. Use shielded twisted pair cables for CT/VT field circuits, fiber media for IEC61850 network links, and bond the rack chassis to protective earth to suppress EMI noise from adjacent high-voltage generator equipment. All protection settings, FlexLogic, communication and metering parameters must be configured via GE EnerVista engineering software after installation.
Buyer’s FAQ
Q: What HS tariff code applies to GE G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C for cross-border shipments? A: Primary HS classification falls under 853710 for electrical protective relay assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on GE G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C? A: Country of Origin is United States. This marking appears on the relay nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does GE G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C ship preloaded with firmware? A: Base firmware is factory pre-installed. Protection element settings, FlexLogic control logic, communication parameters and metering configurations need programming through GE EnerVista engineering software after physical installation.
Q: Should I purchase all-risk shipping insurance for this spare GE generator protection relay? A: Yes. Transit shock can create hidden PCB microcracks or damage CT/VT sampling circuits. Intermittent measurement or protection faults may only manifest after CT/VT field wiring connection. All-risk insurance covers full replacement value for transit handling defects.
