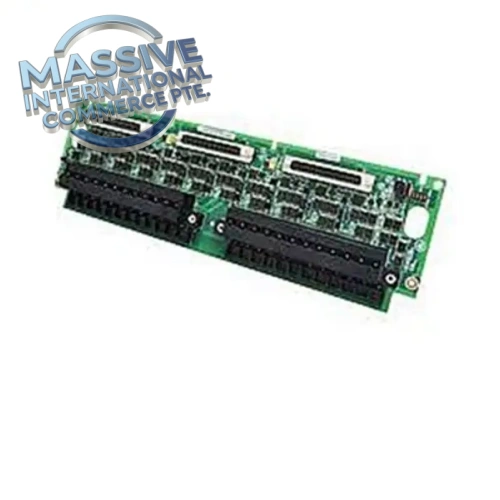

The GE IS200TRTDH1DCB is a RTD input terminal board designed for GE Speedtronic Mark VI turbine control systems. It acquires temperature signals from 3-wire RTD sensors mounted on gas and steam turbine bearings, generator windings and exhaust components, transmitting conditioned temperature data to matching PRTD I/O packs. Equipped with barrier-type removable terminal strips and built-in surge & high-frequency noise suppression, this board delivers stable temperature measurement in high EMI power plant environments. It is widely used for simplex temperature monitoring and turbine thermal protection as a critical DCS spare component.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | IS200TRTDH1DCB |
| Manufacturer | General Electric (GE) |
| Product Type | RTD Input Terminal Board |
| Compatible System | GE Speedtronic Mark VI Turbine Control |
| RTD Input Channels | 8 channels, 3-wire RTD configuration |
| Supported Sensors | Pt100 Platinum, Ni120 Nickel, Cu10 Copper RTD |
| Excitation Current | 10 mA DC multiplexed excitation |
| Terminals | Dual barrier-type removable terminal blocks, 24 screw terminals each |
| Connectors | Two female multi-pin connectors for backplane I/O pack connection |
| Operating Temperature | -30°C ~ +65°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Signal Protection | Onboard surge suppression and EMI noise filtering per input channel |
| Mounting | Rack mount inside Mark VI control cabinet |
| Weight | Approx. 0.45 kg |
Compliance & Certifications
- CE certification for industrial EMC and safety
- Designed in accordance with IEC power generation control standards
- Factory full functional testing before shipment
- PCB coated for harsh power plant environments
Storage & Installation Guidelines
Storage Requirements
- Store in dry, ESD-safe warehouse; recommended ambient temperature 10°C to 30°C, RH <70% non-condensing
- Keep sealed in original anti-static packaging until ready for installation
- Protect from heavy mechanical shock, vibration, dust and corrosive gas
- Always handle with ESD wrist strap when unpacking the printed circuit board
Installation Instructions
- Cut off cabinet rack power supply before removing or inserting the terminal board
- Wear ESD protective equipment to avoid static damage to PCB components
- Wire RTD field cables to barrier terminal blocks following GE Mark VI wiring schematic
- Align and secure multi-pin connectors between IS200TRTDH1DCB and PRTD I/O pack
- Lock the board in cabinet slot and tighten mounting fasteners
- Restore power, download system configuration and verify all RTD temperature readings
- Installation and commissioning must be completed by certified turbine control technicians
FAQ
Q: What system does IS200TRTDH1DCB belong to? A: It is a terminal board for GE Speedtronic Mark VI gas/steam turbine control platform.
Q: How many RTD sensors can this board connect? A: It supports up to 8 pieces of 3-wire RTD temperature sensors.
Q: Can this board work for triple redundant TMR Mark VI systems? A: IS200TRTDH1DCB is designed for simplex temperature monitoring configurations.
Q: Is hot swap supported for this RTD terminal board? A: Hot swapping is not permitted. Full rack power shutdown is required for replacement.
Q: What is the typical warranty period? A: Standard 12-month warranty applies to fully tested boards under normal operating service conditions.
