Description
Product Overview

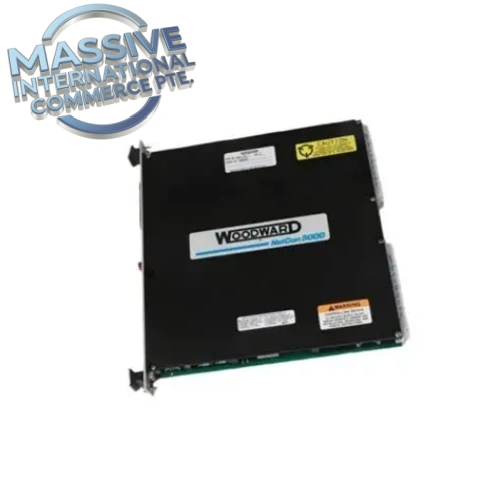

Part Number: 5466-318 Manufacturer: Woodward） Product Series: MicroNet TMR Turbine Control System Type: TMR Kernel Power Supply Module
5466-318 is the dedicated kernel power supply module for Woodward MicroNet TMR triple redundant turbine control rack. It takes 24VDC input from the system main power supply and converts it to regulated 5VDC, max 10A, to power TMR040 CPU and all core kernel logic boards. It also provides 5V pre-charge voltage for controlled power-up sequence, protecting critical kernel components from inrush surge during system startup. It is installed in the VME-style MicroNet TMR chassis and works exclusively paired with TMR040 CPU module. Widely deployed in gas and steam turbine TMR control systems for power generation plants as critical spare part for maintenance and retrofit.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 5466-318 |
| Module Type | TMR Kernel Power Supply |
| Input Voltage | 24 VDC ±10% |
| Output Voltage | 5 VDC ±5% |
| Max Output Current | 10 A |
| Compatible CPU | TMR040 |
| Chassis | MicroNet TMR rack |
| Indicator | Front panel LED for power health status |
| Certification | CE(EMC), CSA |
| Operating Temperature | 0 ~ +55°C |
| Storage Temperature | -40°C ~ +85°C |
| Weight | Approx 0.9kg |
| Coating | Conformal coated PCB for industrial cabinet environment |
Engineer Notes
- 5466-318 is TMR kernel power supply only. It must be matched with TMR040 CPU module inside MicroNet TMR chassis and cannot work standalone.
- Its main function is supplying stable 5V power for the TMR kernel control logic; it is different from the rack main 24V power supply.
- Built-in precharge circuit for soft startup to suppress inrush current and avoid damage to sensitive kernel boards.
- Single LED on front panel, simple status indication for power good / fault diagnosis.
- Not hot-swappable. Cut off rack power before removing or inserting this module.
- Conformal coated PCB offers protection against dust and mild corrosive gas in power plant control cabinet.
- This legacy MicroNet TMR module is end-of-life original production, mainly used for plant spare inventory and turbine control system overhaul.
Pre-Shipment Test Protocol
- Visual inspection of PCB, front panel, edge connector, component and part number marking
- Power loading test: verify stable 5VDC output under full 10A load
- Pre-charge startup sequence functional test
- Over-current protection test
- LED indicator status verification
- Backplane edge connector continuity and insulation resistance test
- Hardware revision and label verification
- Anti-static & shockproof packaging inspection
Buyer FAQ
Q: Is Woodward 5466-318 new original? A: We supply brand new original Woodward units, 12-month warranty, factory test certificate available on request.
Q: What is 5466-318 used for? A: It is the kernel power supply for MicroNet TMR turbine control rack, converts 24VDC to 5VDC power for TMR040 CPU kernel section.
Q: Which CPU must pair with 5466-318? A: Must work with TMR040 CPU module in MicroNet TMR chassis.
Q: Can I hot swap 5466-318 while the turbine controller running? A: No, it is not hot-swappable. Full rack power shutdown required before replacement.
