Description
Product Overview

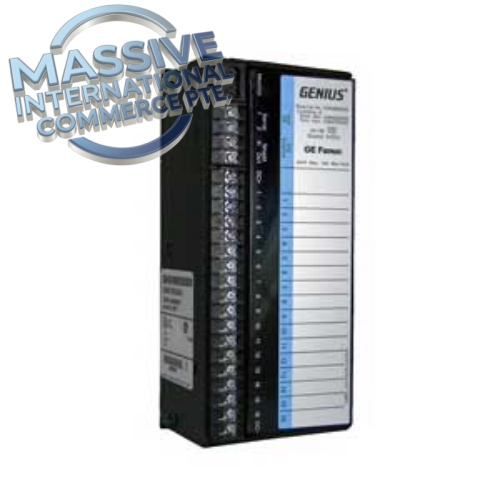

Part Number: IC660EBD020X Manufacturer: GE Fanuc / GE Intelligent Platforms Product Series: Genius Distributed Remote I/O System Type: Electronic I/O Module IC660EBD020X is the electronic logic assembly for GE Genius 16-channel multi-purpose discrete I/O block. It snaps onto IC660TSD020 / IC660TSD020L terminal base to form the complete Genius I/O unit IC660BBD020. This module handles Genius bus communication, channel configuration logic, signal acquisition, output drive and built-in fault diagnostics. All 16 channels are software configurable as sink input, source input or source output, suitable for limit switches, proximity sensors, solenoid coils and field indicator lamps. It communicates with GE Series 90-30 and Series 90-70 PLC over twin-wire Genius bus. Widely used in power plants, water treatment, petrochemical and heavy industry as spare parts for legacy distributed I/O maintenance and retrofit.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | IC660EBD020X |
| Product Type | Genius I/O Electronic Module |
| Compatible Terminal Base | IC660TSD020, IC660TSD020L |
| Channel Count | 16 multi-function discrete channels |
| Field Voltage Range | 18 ~ 56 VDC (24/48VDC nominal) |
| Per-channel rating | Max 2A continuous, 10A peak inrush (10ms) |
| Communication Bus | Genius twin-wire shielded fieldbus |
| Diagnostics | Wire break, short-circuit, overload, overtemperature |
| Electrical Isolation | 1500V block-to-block isolation |
| LED Indicators | Run, fault, bus status, per-channel status |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Certification | cULus, CE, Class1 Div2 / Zone2 T4 |
| Weight | Approx 0.32kg |
Engineer Notes
- IC660EBD020X is electronic module only, cannot run standalone. Must be installed onto IC660TSD020 series terminal assembly to work.
- Suffix X represents updated hardware revision, fully form-fit-function interchangeable with standard IC660EBD020.
- Each channel can be individually set as input or source output via Genius configuration software; input filter time adjustable.
- Integrated comprehensive fault diagnostics; fault information uploaded to host PLC over Genius bus.
- Genius bus is two-wire shielded cable; single-point shield grounding required to reduce EMI noise interference.
- Rated for Class1 Div2 hazardous locations, not suitable for Zone0/Zone1 intrinsically safe applications.
- Power off the I/O block before removing or installing this electronic module. Not hot-swappable when energized.
- Common spare for legacy Genius I/O system inventory, plant overhaul and system upgrade.
Pre-Shipment Test Protocol
- Visual inspection of PCB, bus connector, locking clips, components and part number marking
- Genius bus communication functional test
- Channel logic and fault diagnostic simulation test
- Mechanical locking fit test with IC660TSD020L terminal base
- Insulation resistance test
- LED indicator function verification
- Hardware revision and label verification
- Anti-static & shockproof packaging inspection
Buyer FAQ
Q: Is GE IC660EBD020X new original? A: We supply brand new original GE Fanuc units, 12-month warranty, factory test certificate available on request.
Q: What does suffix X stand for? A: X indicates updated hardware revision, fully interchangeable with standard IC660EBD020.
Q: What terminal base matches IC660EBD020X? A: Compatible with IC660TSD020 and IC660TSD020L terminal assembly.
Q: Which GE PLC controllers work with this module? A: GE Series 90-30 and Series 90-70 PLC via Genius fieldbus.
