Description
Unboxing & Physical Snapshot

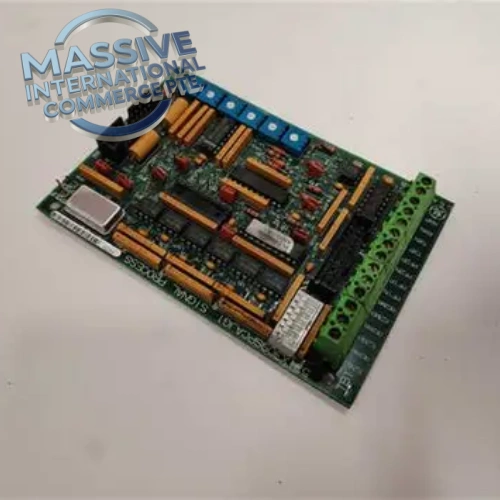

- Brand & Model: GE 531X310NDAEG1, High Horsepower Buffer Board
- Physical Dimensions: 7.5 in × 8.5 in × 2.25 in
- Estimated Shipping Weight: 3.3 lb (packaged with anti-static foam inside rigid export carton)
- What’s in the Box: 531X310NDAEG1 buffer PCB assembly, edge connectors, factory serial test certificate; drive rack, power module, wiring harness sold separately.
Product Introduction (Structure A: Environmental hook)
GE 531X310NDAEG1 is a high horsepower buffer board from GE 531X series drive control family, designed for large industrial drive cabinets in power plants, metal rolling mills and heavy process industries. It is built to withstand continuous mechanical vibration, voltage transients, EMI interference and wide temperature fluctuations that degrade ordinary signal interface boards. This board serves as the intermediate power signal buffer and interface between main drive control logic and high-power power stage modules. It conditions, isolates and buffers control and feedback signals, protects low-voltage control circuits from high-power side noise and surges. Multiple edge connectors facilitate signal routing inside the GE drive rack. Built-in hardware fault detection monitors board health and signal integrity. Signal isolation performance and surge protection are critical audit points for heavy-duty drive safety reviews. Conformal coated PCB enhances reliability in dusty, humid industrial control cabinets.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform | GE 531X Series Industrial Drive System |
| Part Number | 531X310NDAEG1 |
| Product Type | High Horsepower Buffer Board / Power Signal Interface PCB |
| Function | Signal buffering, electrical isolation, power stage interface, surge protection |
| Board Connectors | Multi-edge plug-in connectors for rack backplane & power module wiring |
| PCB Treatment | Conformal coating for harsh industrial environments |
| Operating Ambient Temp | -10 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Relative Humidity (operating) | 5% ~ 95%, non-condensing |
| Enclosure Rating | IP20 (NEMA 1), for rack-mounted cabinet installation |
| Construction | Multi-layer industrial PCB with passive and active buffer components |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61800 adjustable speed drive standard
- RoHS compliant for applicable production batches
UL certification verifies insulation and surge withstand ratings for continuous operation in heavy industrial drive cubicles. Serial-number specific certificates should be validated per individual unit.
Long-Term Storage & Asset Preservation Guide
Store the buffer board sealed inside original ESD shielding bag and reinforced shipping crate in a dry, temperature-stable warehouse. Electrostatic discharge can damage buffer circuits and isolation components, causing signal distortion, intermittent drive trips or control circuit damage after rack installation. Inspect spare units every 24 months. For boards stored more than three years, perform bench continuity and signal test before commissioning; component aging may degrade isolation performance. Do not stack heavy cabinet hardware on the PCB assembly. Mechanical impact can crack PCB traces or damage edge connectors and trigger intermittent drive signal faults.
Physical Installation Prerequisites
Reserve sufficient airflow clearance inside the drive rack for heat dissipation. Elevated cabinet temperature increases signal drift and accelerates component aging. Insert 531X310NDAEG1 fully into the designated GE drive rack slot and lock edge connectors securely. Separate low-level control signal wiring from high-power cables to minimize EMI interference. Bond drive rack chassis to protective earth. Complete rack power-up, signal loop testing and drive parameter configuration after physical board installation.
Buyer’s FAQ
Q: What HS tariff code applies to GE 531X310NDAEG1 for cross-border shipments? A: Primary HS classification falls under 853710 for industrial drive control board assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on GE 531X310NDAEG1? A: Country of Origin is United States. This marking appears on the board silkscreen and nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Is 531X310NDAEG1 interchangeable with 531X310SNDAEG1? A: No, the suffix variant defines component population and power rating; they are not fully interchangeable, must match original part number of the drive rack.
Q: Should I purchase all-risk shipping insurance for this spare GE buffer board? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive buffer and isolation circuits. Intermittent signal faults may only manifest after rack wiring and power-on. All-risk insurance covers full replacement value for transit handling defects.
