Description
Product Overview

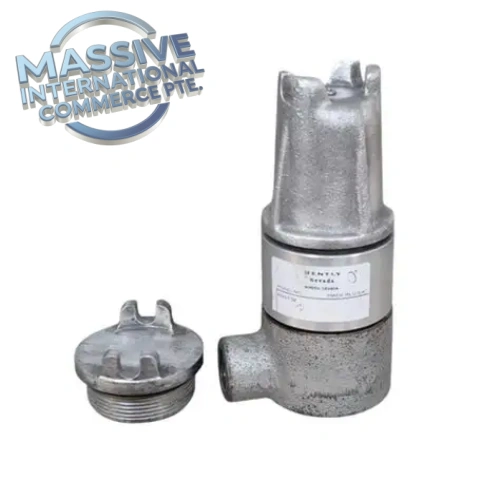

The Bently Nevada 43217-02 is an accelerometer mounting enclosure kit designed for Bently Nevada 330400 and 330425 series accelerometer vibration sensors, used with the 3500 TSI machinery monitoring system. It provides robust, sealed mechanical protection for accelerometers installed on rotating machinery in hazardous industrial environments, supporting both flat and dome cover configurations, and includes extension hardware for flexible field mounting.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 43217-02 |
| Product Type | Accelerometer Mounting Enclosure Kit |
| Compatible Sensors | 330400, 330425 Accelerometers |
| Base Material | Feraloy iron alloy |
| Cover / Extension Material | Copper-free aluminum |
| Seals | Neoprene gasket and O-ring |
| Cable Entry Port | 1/2-in 14 NPT |
| Included Parts | Housing base, flat cover, dome cover, extension sleeve, gaskets, O-rings and fasteners |
| Net Weight | Approx. 0.74 kg |
| Ambient Operating Temp | -40°C ~ +120°C |
| Enclosure Protection | IP66 weatherproof seal |
| Certification | ATEX rated for hazardous area installation |
Key Features
- Dual cover options: flat cover for standard installation, dome cover for space-restricted locations
- Copper-free aluminum components prevent corrosion in sulfur-rich industrial environments
- Sealed neoprene gasket and O-ring assembly blocks moisture, dust and oil contamination
- 1/2 inch NPT cable gland port for secure cable entry and strain relief
- Extension sleeve included to adjust mounting height and avoid mechanical interference
- Feraloy alloy base offers high mechanical rigidity to preserve accurate vibration transmission
- Certified for use in classified hazardous areas on turbines and compressors
- Designed for long-term outdoor and turbine compartment service
Installation & Test Notes
- Select flat or dome cover and assemble the kit components according to machine layout.
- Mount the base rigidly on the machine casing; ensure clean, flat contact surface for vibration transfer.
- Install accelerometer inside housing and route sensor cable through the NPT port, fit cable gland properly.
- Assemble gasket, O-ring and cover, evenly torque fasteners to maintain full environmental sealing.
- Connect accelerometer cable to 3500 monitor module, verify vibration signal reading after power-up.
- Check seal integrity periodically; replace neoprene gaskets/O-rings if cracked, hardened or leaking.
- Inspect housing for corrosion, loose bolts or mechanical damage after machine overhaul.
Application
Vibration monitoring on steam turbines, gas turbines, centrifugal compressors, large fans and pumps in power plants, oil & gas refineries and petrochemical plants. Protects accelerometers in high-temperature, humid, oily or explosive hazardous zones for Bently Nevada 3500 machinery protection systems.
FAQ
Q: Which accelerometers fit the 43217-02 mounting kit? A: It is designed for Bently Nevada 330400 and 330425 series accelerometer vibration sensors.
Q: What is the difference between flat cover and dome cover? A: Flat cover is the standard option; dome cover provides extra internal clearance for sensor connector in tight mounting spaces.
Q: Is this kit suitable for hazardous areas? A: Yes, it carries ATEX certification for installation in classified explosive hazardous locations.
