Description
Product Overview

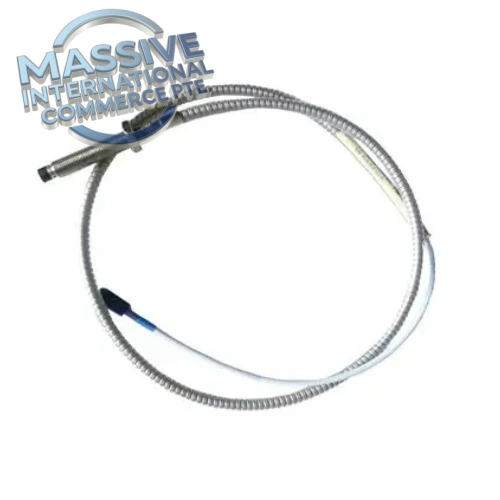

Bently Nevada 330104-00-11-10-02-05 is a 3300 XL 8mm eddy current proximity probe with non-armored triaxial cable and M10×1 mounting thread. It acts as the sensing element for the 3300 XL 8mm transducer system. The probe measures radial shaft vibration, axial thrust position and keyphasor speed signals for 3500 series machinery monitoring racks on steam turbines, centrifugal compressors, generators and other high-speed rotating assets. The non-armored FEP jacket suits installations inside protected enclosures where abrasion risk is low. The final 05 suffix indicates CN certification documentation is included. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for turbomachinery protection and condition monitoring systems.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 330104-00-11-10-02-05 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | 3300 XL 8mm non-armored proximity probe |
| Thread | M10 × 1 |
| Probe Tip Diameter | 8 mm |
| Cable Construction | 75Ω triaxial, FEP insulation, non-armored outer jacket |
| Probe Cable Length | 1.0 m |
| Connector | ClickLoc miniature coaxial |
| Linear Measurement Range | 0.25 mm ~ 2.3 mm |
| Recommended Install Gap | 1.27 mm (50 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz, +0/-3dB |
| Operating Temperature | -51°C ~ +177°C |
| Storage Temperature | -55°C ~ +180°C |
| Compliance | API 670, CN certification |
| Minimum Flat Target Size | 15.2 mm diameter |
Engineer Notes
- This probe is for standard 3300 XL 8mm transducer assemblies. The combined length of the probe cable plus extension cable must match the total calibrated length of the paired Proximitor. Mismatched total length changes scale factor and creates measurement drift or false machinery alarms.
- M10×1 threaded body needs controlled torque on installation. Over-tightening can crack the probe housing and damage the internal sensing coil.
- ClickLoc connectors are precision components. Do not twist, pull or contaminate contact surfaces. Damaged connectors produce intermittent gap readings and unstable vibration signals.
- Route non-armored triaxial cable separately from high-current AC power and relay wiring. Electrical interference disturbs eddy current signals and degrades transducer linearity.
- Observe minimum cable bend radius. Sharp bends deform internal triaxial layers and alter capacitance, voiding factory calibration.
- Non-armored cable must run inside rigid conduit in areas with abrasion, impact or debris exposure. Secure cable supports to reduce vibration fatigue at connector joints.
- Apply ESD controls while handling. Inspect probe tip, cable jacket and connector before installation. After replacement, set mechanical gap and validate full transducer linearity before returning machinery to service.
Pre-Shipment Test Protocol
- Visual inspection: Check probe tip, threaded body, FEP cable jacket and ClickLoc connector for cracks, dents, cuts, corrosion or deformed pins.
- DC resistance test: Verify probe coil resistance falls within factory tolerance range.
- Insulation resistance test: Confirm high insulation resistance between inner conductor and shield layers.
- Bench linearity test: Mount probe on gap fixture, move steel target across full linear range and confirm voltage output matches scale factor.
- Fault simulation: Disconnect probe connector; confirm paired Proximitor triggers fault state.
- Save test logs and photos for QA records.
Buyer FAQ
Q: Can I use this probe with 3300 XL NSv Proximitor? A: No. This is standard 3300XL 8mm probe. NSv transducers require NSv series probes and Proximitors. Do not mix component families.
Q: What target material matches the factory calibration? A: Calibration is performed using AISI 4140 steel target. Other target materials will shift the scale factor.
Q: Is the cable armored? A: No, this model is non-armored, intended for protected enclosure routing only.
Q: Are extension cable and Proximitor included? A: Only the proximity probe is supplied. Extension cable and Proximitor sold separately unless noted on your quote.
