Bently Nevada 330130-040-01-CN 4m 3300 XL 8mm Armored Probe Extension Cable

Description

Product Overview

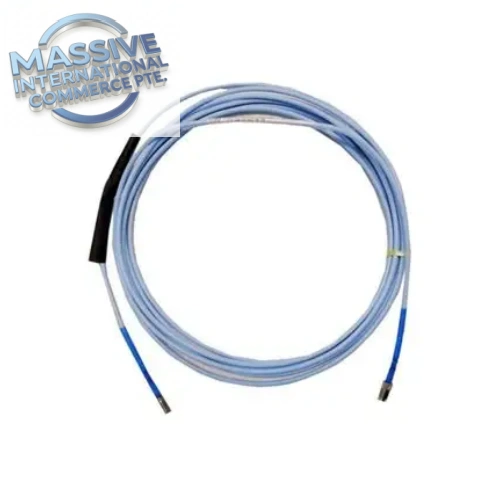

Bently Nevada 330130-040-01-CN is a 4-meter armored coaxial extension cable built for the 3300 XL 8mm eddy current proximity transducer system. It links the 8mm proximity probe to the matching Proximitor sensor, transmitting high-frequency shaft gap, vibration and axial position signals to 3500 machinery monitoring racks. The armored construction adds mechanical protection for installations on turbines, centrifugal compressors, generators and other critical rotating assets. The CN suffix indicates compliant certification documentation. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for machinery protection and condition monitoring systems.

Technical Specifications

Engineer Notes

• This cable is designed for 3300 XL 8mm proximity probe assemblies. The combined total length of probe plus extension cable must match the calibrated length setting of the Proximitor sensor. Mismatched total length will shift scale factor and create measurement error.
• ClickLoc coaxial connectors are precision components. Do not twist, pull, or contaminate contact surfaces during installation. Damaged connectors lead to intermittent gap readings and false machinery alarms.
• Route armored cable separately from high-current AC power and relay wiring. Electrical interference distorts eddy current signals and degrades linearity.
• Observe the minimum cable bend radius. Sharp bends deform internal coaxial structure and alter capacitance, which changes transducer calibration.
• Stainless steel armor provides abrasion protection but is not a substitute for rigid conduit in heavy mechanical wear zones. Secure cable at support points to reduce vibration fatigue at connector junctions.
• Apply ESD controls while handling. Inspect connector seals before installation. After replacement, perform gap calibration and validate vibration and position readings on the monitoring rack.

Pre-Shipment Test Protocol

1. Visual inspection: Check FEP jacket, stainless steel armor, ClickLoc connectors for cuts, dents, corrosion or deformed contact pins.
2. Continuity test: Verify center conductor continuity and confirm no short circuit between center conductor and shield.
3. Capacitance measurement: Confirm total cable capacitance stays within factory tolerance band.
4. Insulation resistance test: Validate high insulation resistance between inner conductor and shield.
5. Bench functional test: Pair cable with known-good 3300XL 8mm probe and Proximitor, check gap response and linearity across measurement range.
6. Save test logs and photos for QA records.

Buyer FAQ

Q: Can I swap 330130-040-01-CN with other length 3300XL extension cables? A: Connector style is identical, but total transducer assembly length changes Proximitor calibration. Confirm full probe + extension length before cutover.

Q: Is this cable compatible with 3300 XL NSv probe systems? A: No. This is standard 3300XL 8mm cable, not NSv series. Do not mix standard XL and NSv components.

Q: Is this new original Bently Nevada factory stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.

Q: Are proximity probe or Proximitor sensor included? A: Only the 4m armored extension cable is supplied. Probe and Proximitor sold separately unless noted on your quote.
