Description
Product Overview

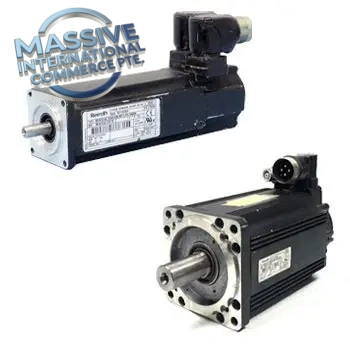

MSK076C-0300-NN-S1-UP0-NNNW is an IndraDyn S high-performance permanent magnet synchronous servo motor manufactured by Bosch Rexroth (Indramat). It is built for high dynamic positioning and speed control applications in automated machinery. This model features natural convection cooling, plain shaft without holding brake, and S1 Hiperface single-turn encoder. It pairs with Rexroth IndraDrive servo drives for precise motion control in machine tools, material handling, and packaging equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | MSK076C-0300-NN-S1-UP0-NNNW |
| Manufacturer | Bosch Rexroth (Indramat) |
| Series | IndraDyn S MSK |
| Motor Frame Size | 076, C length |
| Winding Code | 0300 |
| Max Speed | 4700 rpm |
| Continuous Stall Torque (60K) | 12 N·m |
| Continuous Stall Torque (100K) | 13.5 N·m |
| Peak Torque | 43.5 N·m |
| Continuous Stall Current | 7.2 A |
| Peak Current | 32.4 A |
| Rotor Inertia | 0.00430 kg·m² |
| Encoder | S1, Hiperface single-turn |
| Shaft Type | Plain shaft, no keyway |
| Brake | NN = No holding brake |
| Cooling Method | Natural convection |
| Connector Style | UP0, rotatable power & encoder connectors |
| Pole Pairs | 4 |
| Thermal Time Constant | 25 min |
| Winding Inductance | 12.6 mH |
| Voltage Constant (20°C) | 113 V/krpm |
| Torque Constant (20°C) | 1.6 N·m/A |
| Protection Class | IP65 (shaft side / connector side) |
| Ambient Temperature | 0 ~ +40°C |
| Mounting | IEC standard flange mounting |
| Weight | Approx. 21 kg |
Key Features
- High torque density compact synchronous servo motor with outstanding dynamic response
- Hiperface S1 single-turn encoder, reliable high-resolution position feedback for IndraDrive systems
- Plain shaft design without brake, reduces rotating inertia for fast acceleration cycles
- Natural convection cooling, no fan required; low noise and less maintenance
- Rotatable M23 power and encoder connectors (240° rotation) for flexible cabinet wiring
- IP65 housing protection, suitable for factory workshop environments with dust and moisture
- Optimized for Rexroth IndraDrive servo drive platform, perfect system matching
Application Scenarios
- Machine tool feed axes
- Automated assembly lines
- Packaging & converting machinery
- Gantry robots and material handling systems
- Printing and textile processing equipment
- General high-precision motion control automation
Installation & Maintenance Notes
- Mount on rigid mechanical base to minimize vibration and resonance
- Ensure proper shaft alignment during coupling installation; avoid radial/axial overload on motor bearing
- Keep motor ventilation area clean; do not cover the motor housing for natural heat dissipation
- Check connector tightness and cable shielding after installation; use shielded servo cable per Rexroth specification
- Do not perform insulation resistance test on encoder circuit to avoid encoder damage
- Regular bearing grease inspection during long term operation; replace bearings at recommended service interval
- Verify encoder wiring before power-up; incorrect wiring will cause position fault or motor damage
FAQ
Q: What is the breakdown of MSK076C-0300-NN-S1-UP0-NNNW ordering code? A: MSK = IndraDyn S servo motor; 076 = frame size; C = stator length; 0300 = winding variant; NN = no brake; S1 = Hiperface single-turn encoder; UP0 = rotatable power/encoder connectors; NNNW = mechanical and special option variant.
Q: What is the difference between S1 and M1 encoder options for MSK motors? A: S1 = Hiperface single-turn encoder, no multi-turn position memory; M1 = Hiperface multi-turn encoder with battery-free multi-turn position recording, used for vertical axes or homing-free applications.
