Description
Product Overview

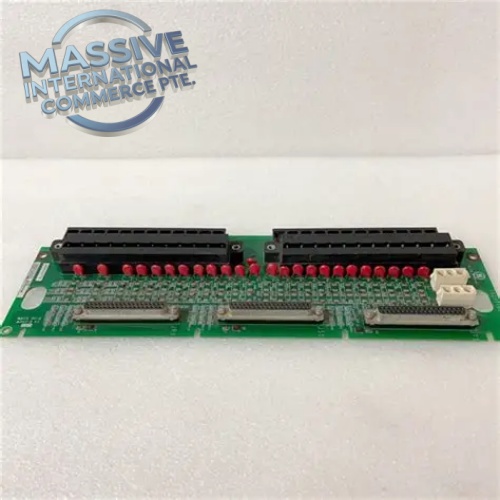

IS200EDISG1AAA (EDIS) is the exciter power distribution board for GE Vernova Speedtronic Mark VIe EX2100e static excitation control system. It serves as the central power hub inside the excitation rack, accepting redundant AC and 125VDC station battery backup power, then distributes regulated multi-voltage power to all other EX2100e rack modules including controller, bridge interface, auxiliary and signal conditioning boards. It integrates power fusing, branch switching and power fault monitoring for the entire excitation cabinet.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | GE / GE Vernova |
| Part Number | IS200EDISG1AAA |
| Product Type | Exciter Power Distribution Board (EDIS) |
| Compatible System | Speedtronic Mark VIe, EX2100 / EX2100e Generator Excitation System |
| Input Power | Dual 115/230VAC (50/60Hz); 125VDC station battery backup |
| Regulated Outputs | 28VDC, 24VDC, ±15VDC, +5VDC isolated rails |
| Onboard Components | 5 bridge switches, multi-channel fuses, fault status detection circuits |
| Mounting | VME slot plug-in in EX2100e excitation rack |
| Operating Temperature | -30 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Humidity | 5%–95% RH, non-condensing |
| Net Weight | Approx. 1.3 kg |
| Status | Obsolete, legacy spare part |
Key Features
- Redundant Power Input Support: Accepts dual AC control power plus 125VDC battery backup. Automatically switches to DC battery supply when AC power is lost, maintaining excitation control during plant power outages.
- Multi-Rail Isolated Power Distribution: Converts incoming raw control power into multiple isolated low-voltage supplies for all EX2100e rack PCB modules.
- Individual Branch Protection: Built-in fuses and dedicated bridge switches for each power branch, isolating short-circuit faults to avoid total rack power failure.
- Power Fault Diagnostics: Monitors input power health, fuse status and output rail voltage, sends fault alarms to Mark VIe controller via HSSL link for ToolboxST diagnosis.
- EX2100e Rack Core Power Backbone: Works cooperatively with DACA rectifier board, EBRG bridge interface, EAUX auxiliary board and EXAM attenuation module.
- Dedicated Excitation Rack Design: Not interchangeable with standard Mark VI turbine power distribution boards used in main turbine control racks.
Applications
- Combined-cycle power plant EX2100e static excitation cabinets
- Steam / gas turbine generator voltage regulation systems
- Hydroelectric generator Mark VIe excitation control racks
- Captive industrial power station generator excitation protection
- Power plant generator field control and monitoring cabinets
Installation & Maintenance Notes
- ESD protection must be used during handling and replacement of this PCB.
- Perform full lockout/tagout and de-energize all AC and 125VDC battery feeds before removing the board; hazardous high voltage exists on power terminals.
- Inspect all fuses, switch contacts and power terminals for overheating or discoloration during overhaul.
- After installation and power restoration, use ToolboxST to verify all output voltage rails and power diagnostic status.
- Replace blown fuses only with the exact specified part number; do not use higher-rated replacement fuses.
- Check for loose power connectors and thermal aging of electrolytic capacitors during scheduled maintenance.
FAQ
Q: What is the difference between IS200EDISG1AAA and other EDIS revisions? A: IS200EDISG1AAA is the base hardware variant of the EDIS power distribution board. Other suffix revisions are pin-compatible in most EX2100e racks, but full power rail testing is recommended after replacement.
Q: Can this EDIS board be used in standard Mark VI turbine control rack (non-excitation)? A: No. IS200EDISG1AAA is specifically designed for EX2100/EX2100e excitation racks and cannot replace JPDB turbine main power distribution boards.
