GE XDP-221-2 | Through-Glass Infrared Keypad Explosion-Proof Display Replacement Spare

Description

At-A-Glance Executive Brief

• Model: XDP-221-2
• Brand: GE Panametrics
• Part Type: Explosion-proof local display / operator interface module for thermal conductivity gas analyzers
• Lifecycle status: Discontinued legacy unit; stocked for brownfield gas analysis system retrofits
• System compatibility: GE Panametrics thermal conductivity gas analyzers & transmitters, 4–20mA analog output to DCS/SCADA
• Weight: ~1.18 kg

Technical Introduction

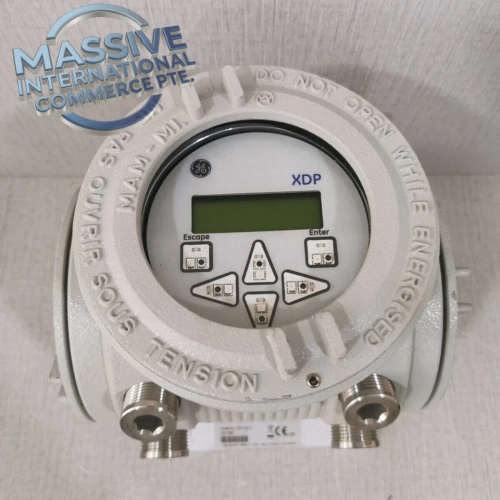

Failure of the XDP-221-2 results in loss of local gas concentration readout, inability to perform on-site calibration/configuration, and loss of local alarm indication; the analyzer can still send analog measurement values to DCS, but all local HMI operation is unavailable. The GE Panametrics XDP-221-2 is a rugged explosion-proof local display and operator interface designed for thermal conductivity gas analyzers used in hazardous process areas. It provides real-time local readout of gas concentration (H₂, O₂ and other process gases, in % or ppm). It adopts infrared through-the-glass keypad technology, allowing technicians to configure parameters, perform calibration and view alarms without opening the flameproof enclosure, critical for Class I Division 1 hazardous locations. The unit contains 4 configurable process alarms plus 1 system fault alarm. It features a configurable analog output to feed gas measurement values to plant DCS or SCADA. It supports auto-verification and auto-calibration options to reduce routine maintenance workload. Widely used in oil & gas, petrochemical, power generation and hydrogen monitoring applications. End users stock spare XDP-221-2 units for fast replacement during analyzer maintenance.

• Best Suited For
  • GE Panametrics thermal conductivity gas analyzer assemblies
  • Hazardous area local gas concentration indication, on-site calibration and alarm monitoring
  • Direct drop-in replacement for existing GE Panametrics XDP-221-2 explosion-proof display hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• The XDP-221-2 is matched to the Panametrics thermal conductivity analyzer sensor unit. Confirm analyzer model and firmware compatibility before replacement.
• This is explosion-proof equipment. All installation, wiring and replacement work must comply with hazardous area safety procedures.
• The infrared keypad is through-glass; scratches, dirt or coating on the viewing window will cause keypad unresponsiveness.
• 4–20mA loop wiring to DCS must check loop resistance; excessive load causes measurement saturation.
• After replacement, verify gas readings match DCS value, recheck alarm threshold setup and perform calibration verification.
• ESD protection required while servicing internal PCB subassemblies.

Adaptive QA & Testing Protocol

Each XDP-221-2 unit is bench tested with Panametrics gas analyzer test fixture. We verify display readout and infrared through-glass keypad function. 4–20mA analog output is calibrated across full measurement range. All 4 process alarms and system fault alarm functions are simulated and validated. Enclosure visual inspection, gasket integrity, connector continuity and PCB inspection are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is GE Panametrics XDP-221-2 used for? A: It is an explosion-proof local display HMI for GE Panametrics thermal conductivity gas analyzers. It shows gas concentration locally, allows calibration via infrared through-glass keypad, triggers local alarms and sends 4-20mA measurement signal to DCS/SCADA in Class I Div 1 hazardous zones.

Q: What warranty applies for refurbished and NSFP XDP-221-2? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, window/keypad contamination, improper hazardous-area installation and field wiring surges.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus GE Panametrics XDP-221-2 units.

Q: Can XDP-221-2 work standalone without the Panametrics gas sensor? A: No. It is only the display/interface head; it requires connection to the matched thermal conductivity gas analyzer sensor transmitter to receive gas measurement data.
