Description
Unboxing & Physical Snapshot

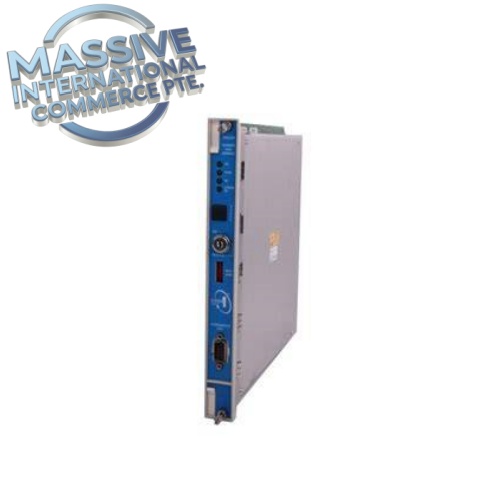

- Brand & Model: Bently Nevada 140734-06, 3500/46M Hydro Monitor
- Physical Dimensions: 9.50 in H × 0.96 in W × 9.52 in D
- Estimated Shipping Weight: 2.0 lb (packaged with ESD foam and rigid corrugated carton)
- What’s in the Box: Hydro monitor module, gold-plated edge connector, front panel BNC transducer ports, factory serial test certificate; hydro sensors and field cabling sold separately.
Product Introduction (Structure A: Environmental hook)
This hydro monitor is engineered for hydroelectric turbine units, where high moisture, airborne water mist, and continuous low-frequency machine motion degrade standard vibration monitoring hardware. It accepts inputs from proximity probes, seismic transducers, and hydro displacement sensors to monitor shaft vibration, thrust position, runout, and relative motion for water turbine and generator protection.
Each input channel performs continuous cable fault detection to identify broken transducer wiring before a dangerous machine condition goes undetected. (Unmonitored hydro sensor cabling is commonly cited during hydro plant third-party safety audits.) The conformal-coated PCB protects sensitive front-end circuits from humidity and condensation inside powerhouse control rooms.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | Bently Nevada 3500 Machinery Protection Rack |
| Number of Input Channels | 4 programmable hydro monitoring channels |
| Nominal Power | 24 VDC, powered from 3500 rack backplane |
| Typical Power Draw | 8.2 W |
| Supported Transducers | Proximity probes, velocity sensors, accelerometers, hydro displacement transducers |
| Measurable Parameters | Radial vibration, thrust position, shaft runout, differential expansion, relative motion |
| Operating Ambient Temp | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 PCB, conformal coating, gold-plated edge connector |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- SIL 2 capable (system-level evaluation required)
- ATEX / IECEx available for qualified production lots
- API 670 compliant for rotating machinery protection applications
The UL/cUL listing defines PCB creepage and flammability ratings to limit arc fault spread during component failure, critical for humid hydro powerhouse environments. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the module sealed inside its original ESD shielding bag and shipping carton while stored as a spare. Electrostatic discharge can damage high-impedance proximity inputs and create unstable displacement readings after rack insertion.
Inspect electrolytic capacitors every 24 months for assets stored longer than three years. Apply controlled voltage reforming for spares held past four years; aged capacitance can introduce measurement drift during hydro unit startup and load transients.
Do not stack heavy rack modules on the module faceplate. Compressive force can bend edge connector pins and crack conformal coating, allowing moisture contamination of PCB traces.
Physical Installation Prerequisites
Leave a minimum of 40 mm vertical clearance above and below the populated 3500 rack for convection cooling. Elevated junction temperatures increase measurement drift on low-frequency hydro vibration signals.
Slide the module fully into the rack slot until the front latch engages and locks the edge connector to the backplane. Bond the 3500 rack chassis to plant instrument earth; floating chassis potentials induce common-mode noise on long hydro sensor cable runs.
Buyer’s FAQ
Q: What HS tariff code applies to Bently Nevada 140734-06 for cross-border shipments? A: Primary HS classification falls under 853710 for electronic monitoring assemblies for rotating machinery protection. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on Bently Nevada 140734-06? A: Country of Origin is United States. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does 140734-06 ship preloaded with firmware? A: Yes. Base firmware is factory loaded. Channel sensor types, alarm thresholds and transducer sensitivity must be configured via 3500 configuration software after rack integration.
Q: Should I purchase all-risk shipping insurance for this spare hydro monitor? A: Yes. Edge pin damage or hidden PCB microcracks from transit shock may only surface once powered and connected to hydro turbine transducers. All-risk insurance covers full replacement value for handling defects.
