ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127 | IGCT Power Semiconductor Module, High-Power Industrial Drive Spare Part, In Stock

Model: 5SHY35L4503-3BHB004693R0001-3BHB004692R0002-5SXE01-0127
Brand: ABB
Alternative Part No.: 3BHB004693R0001, 3BHB004692R0002, 5SXE01-0127
Product Type: Integrated Gate-Commutated Thyristor (IGCT)
Application: High-power industrial converters, medium-voltage drives, and power electronics systems
Mounting Type: Press-pack

Model: 5SHY35L4503
Brand: ABB
Weight: ~2.7 kg
Dimension: approx 270×240×85 mm
HS Code: 85413000
Type: IGCT Power Module
Output: High‑power semiconductor switching component

Model: 3BHB004693R0001
Brand: ABB
Weight: ~1.0 kg
Dimension: approx 250×160×35 mm
HS Code: 85389091
Type: Gate Driver Board
Output: IGCT gate drive signal

Model: 3BHB004692R0002
Brand: ABB
Weight: ~1.3 kg
Dimension: approx 260×170×45 mm
HS Code: 85389091
Type: Baseplate Cooler Board
Output: Power cooling interface

Model: 5SXE01‑0127
Brand: ABB
Weight: ~0.33 kg
Dimension: approx 115×75×32 mm
HS Code: 85413000
Type: IGCT Gate Unit
Output: Gate drive pulse signal

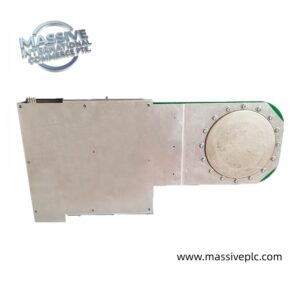

5SHY35L4503?3BHB004693R0001?3BHB004692R0002?5SXE01-0127

Product Overview

The ABB 5SHY35L4503 is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor device designed for switching applications in industrial power electronics. Related ordering references include 3BHB004693R0001, 3BHB004692R0002, and 5SXE01-0127.

This component is intended for maintenance and replacement in compatible high-power converter and industrial drive systems. Before ordering, verify the complete part number and associated gate-unit configuration against the installed component and equipment documentation.
