Description
Product Overview

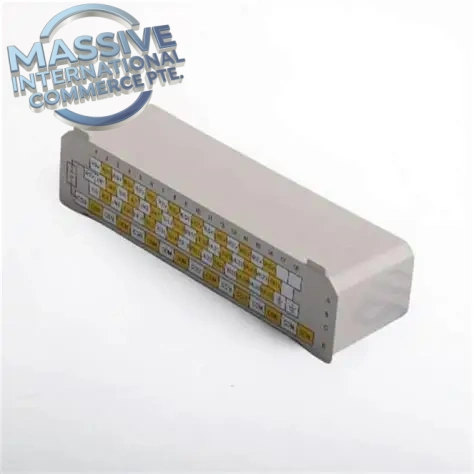

The Emerson Ovation 1X00884H01 is a PMOD cavity insert assembly designed for the 32-channel contact event input module within the Ovation distributed control system. It provides mechanical mounting, signal routing and terminal alignment for contact inputs used in sequence-of-event (SOE) capture. This component routes discrete contact signals from field switches, breaker auxiliary contacts and status interlocks to the Ovation PMOD electronics. It is commonly deployed in power generation plants for turbine, generator and boiler event logging with high time-stamp resolution. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for Ovation I/O racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 1X00884H01 |
| Manufacturer | Emerson (Westinghouse Ovation) |
| Module Type | PMOD Cavity Insert, 32CH Contact Event Input |
| Channel Count | 32 contact input points |
| Signal Type | Dry contact / voltage contact status input |
| Function | Signal routing, terminal alignment, mechanical carrier for SOE PMOD |
| Isolation | Matches PMOD electronics field-to-backplane isolation rating |
| Backplane Supply | 24VDC (supplied to paired PMOD electronics) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting | Ovation PMOD rack cavity mount |
| Weight | 140g |
Engineer Notes
- This is a passive cavity insert only. It must be paired with the matching PMOD event input electronics module and cannot operate independently.
- Front terminal positions are pre-marked for 32 contact channels. Confirm channel labeling during replacement to avoid miswiring breaker or interlock status points.
- SOE logging relies on clean contact signals. Debounce and time-stamp parameters are configured in the Ovation controller point database, not on this cavity insert.
- Use shielded twisted pair for field contact wiring. Separate contact input cables from high-current relay or AC power wiring to reduce contact bounce and false event triggers.
- Inspect terminal pins and plastic alignment features before installation. Cracked housing or bent pin pockets can cause intermittent contact and missing SOE records.
- Apply ESD controls while handling. De-energize rack power before removing or installing the cavity insert. After replacement, verify all 32 channels register contact status changes and event time stamps.
Pre-Shipment Test Protocol
- Visual inspection: Check housing, terminal pockets, alignment tabs and pin guides for cracks, deformation or physical damage.
- Continuity test: Verify internal signal traces across all 32 channel paths, check for unintended shorts between adjacent channels.
- Mechanical fit test: Insert into a known-good Ovation PMOD carrier, confirm proper seating and locking.
- Functional bench test: Mate with working PMOD electronics, apply contact closures to each channel, confirm controller receives status changes and event timestamps.
- Power cycling: Cycle 24VDC rack power 10 times, confirm no intermittent channel dropout after each restart.
- Save test logs and photos for QA records.
Buyer FAQ
Q: Can I swap 1X00884H01 with other Ovation PMOD cavity inserts? A: Physical form fits the same PMOD carrier, but channel count and terminal layout are specific to the 32-channel event input PMOD. Match part number and PMOD electronics before cutover.
Q: Does this cavity insert include the PMOD electronics board? A: No. 1X00884H01 is only the passive cavity/terminal insert. The electronics board must be ordered separately.
Q: Is this new original Emerson factory stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.
Q: Are wiring terminals included? A: Terminals are integrated on the cavity insert. External field wiring cables are sold separately unless noted on your quote.
