Description
Unboxing & Physical Snapshot

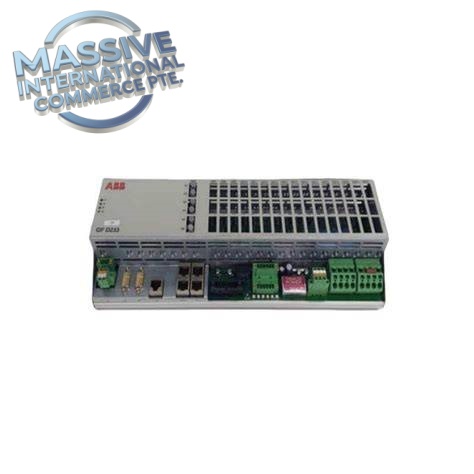

- Brand & Model: ABB GFD233A, part code 3BHE022294R0101, PEC80 LIN control board
- Physical Dimensions: 14.2 in H × 5.4 in W × 2.7 in D
- Estimated Shipping Weight: 3.0 lb (packaged with anti-static foam and rigid export carton)
- What’s in the Box: LIN control board, front panel connectors, status LEDs, factory serial test certificate; backplane and signal cabling sold separately.
Product Introduction (Structure B: Architecture hook)
This ABB GFD233A 3BHE022294R0101 LIN control board plugs into the ABB PEC80 / AC800PEC power electronic controller rack, acting as a high-speed signal interface for Megadrive LCI and excitation converter systems. It acquires analog measurement signals and handles internal LIN bus data exchange between power electronics hardware and the main control processor, supporting high-dynamic motor and generator converter control.
Continuous built-in diagnostics monitor signal integrity, bus communication and component health, alerting operators to wiring faults or board degradation before converter trip events. (Loss of high-speed measurement links is a common point of review during power converter and generator protection audits.) Conformal coating protects PCB traces from cabinet dust and airborne contaminants in high EMI power room environments.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | ABB PEC80 / AC800PEC, Megadrive LCI converter systems |
| Part Number | GFD233A, 3BHE022294R0101 |
| Primary Function | LIN bus interface, high-speed analog signal acquisition for power converters |
| Local Bus | ABB LIN internal high-speed control bus |
| Analog Input | 16-bit high resolution analog measurement channels |
| Power Supply | 24 VDC from rack backplane |
| Operating Ambient Temp | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 conformal-coated PCB, metal front panel, rack edge connector |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61800 adjustable speed drive compliance
- EMC tested for high-voltage converter cabinet environments
- RoHS compliant for qualified production batches
The UL/cUL listing verifies PCB insulation spacing and thermal ratings for continuous operation inside medium-voltage converter control cubicles. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Store the module sealed inside its original ESD shielding bag and shipping carton in a temperature-stable warehouse. Electrostatic discharge can damage high-speed analog sampling circuits and LIN bus transceivers, causing intermittent communication loss after rack insertion.
Inspect spare modules every 24 months. For units stored longer than three years, perform powered pre-test before installation; aged electrolytic capacitors may introduce measurement offset during converter startup transients.
Do not stack heavy rack hardware on the module front panel. Mechanical shock can crack PCB traces or damage edge connectors, triggering unstable LIN bus communication.
Physical Installation Prerequisites
Maintain a minimum of 40 mm clearance above and below the populated PEC80 rack for convection cooling. Elevated cabinet temperature increases analog measurement drift and shortens component service life. Insert the board fully into the assigned rack slot and lock the front retaining latch to fully engage the backplane connector. Use shielded twisted pair wiring for external analog measurement signals, and bond the rack chassis to local protective earth to suppress high EMI noise from power semiconductors.
Buyer’s FAQ
Q: What HS tariff code applies to ABB GFD233A 3BHE022294R0101 for cross-border shipments? A: Primary HS classification falls under 853710 for electrical control assemblies for power electronic converters. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on ABB GFD233A 3BHE022294R0101? A: Country of Origin is Switzerland. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does GFD233A 3BHE022294R0101 ship preloaded with firmware? A: Yes, base firmware is factory pre-installed. Converter parameters, signal scaling and LIN bus configuration must be set via ABB AC800PEC engineering software after physical installation.
Q: Should I purchase all-risk shipping insurance for this spare LIN control board? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive analog front-end circuits. Intermittent LIN bus failures may only manifest once the converter is energized. All-risk insurance covers full replacement value for transit handling defects.
