- Model: 1C31147G01
- Brand: Emerson Ovation

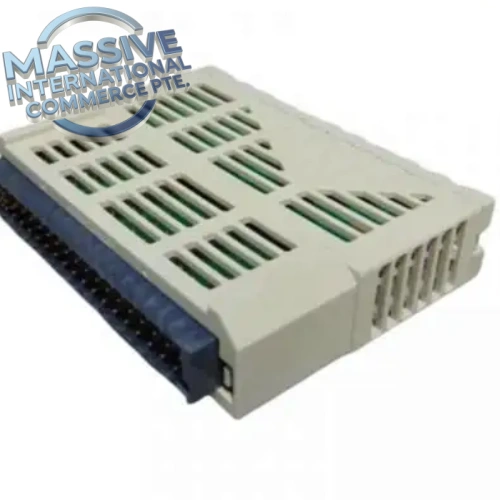

- Part Type: 8-channel Pulse Accumulator Electronics Module
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack platform
- Max input frequency: 30kHz per channel
Technical Introduction
Pulse counting tasks can overload Ovation controllers when totalizing high-frequency meter pulses directly in the control logic. This pulse accumulator E-module captures and totalizes pulse signals locally on the card, reducing backplane load and preserving controller scan performance. It mounts with a matched personality module that defines terminal pinout and signal voltage levels for field pulse transmitters. The module accumulates pulse counts, calculates frequency, and sends totalized values to the Ovation controller for flow metering, turbine speed monitoring and batch totalization.
Best Suited For
- Power plant Ovation DCS rack spare stocking and obsolescence mitigation
- Liquid/gas flow meter pulse totalization and speed pickup monitoring
- Legacy Ovation pulse input replacement for metering and balance-of-plant instrumentation
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31147G01 |
| Module Type | Pulse Accumulator Electronics Module |
| Channel Count | 8 |
| Max Input Frequency | 30 kHz per channel |
| Supported Input Logic Levels | 5V,12V,24V,48V pulse inputs (via personality module) |
| Mounting | Ovation I/O rack, paired with matching personality module |
| Backplane Power | 24 VDC |
| Function | Pulse counting, frequency measurement, local totalization |
Please refer to the OEM datasheet for complete environmental tolerances.
Field Engineer’s Tech Notes
- Noise on pulse wiring creates false trigger counts. Run shielded twisted pair cable and separate pulse wiring from high-current AC cables. Unfiltered contact bounce from mechanical meter switches will produce overcounting.
- Confirm personality module voltage matches your field pulse transmitter. Mismatched voltage thresholds cause missed pulses or spurious counts, and the fault logs may not flag this configuration error.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing with a precision pulse generator feeding all 8 channels. We vary pulse frequency across the full operating range to validate count accuracy and frequency measurement. Backplane handshake verifies rack registration and correct transfer of accumulated pulse totals to the Ovation controller. Terminal continuity checks identify bent pins or damaged PCB traces. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31147G01 replace standard digital input cards for pulse counting? A: It fits the same Ovation rack slot, but standard DI modules lack local totalization. Use this accumulator card for high-frequency pulse meters; confirm personality module compatibility before commissioning.
Q: What warranty applies to new surplus or refurbished Emerson 1C31147G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage from overvoltage field pulses, wiring noise-induced faults, or mismatched personality hardware.
Q: Does this module retain pulse totals after backplane power loss? A: Onboard count registers reset on power cycle. Use Ovation controller logic to store periodic snapshots for permanent flow total records.
Q: What lead time applies to this obsolete Ovation pulse accumulator module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
