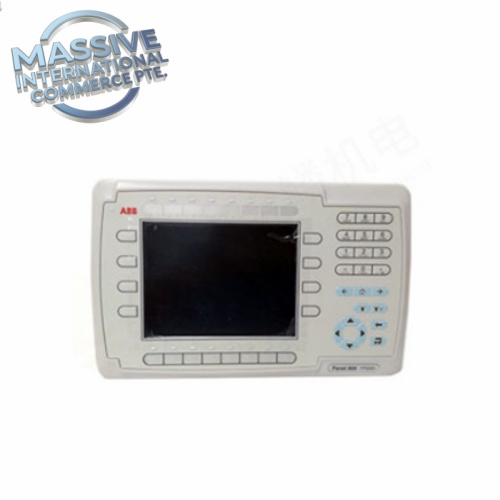

ABB PP836A (3BSE042237R2) | Panel 800 6.5” Keypad Operator Panel for AC800M DCS In Stock

Description

At-A-Glance Executive Brief

• Model: PP836A, part number 3BSE042237R2
• Brand: ABB
• Part Type: Panel800 series 6.5-inch keypad operator panel / HMI
• Lifecycle status: Legacy DCS HMI; stocked for brownfield ABB AC800M / Freelance DCS retrofits
• System compatibility: ABB AC800M controller, Freelance DCS, Panel Builder configuration software, Ethernet / serial communication for process monitoring and operation
• Weight: ~1.4 kg

Technical Introduction

Failure of PP836A removes local operator interface access to the DCS. Operators lose the ability to view process trends, acknowledge alarms, adjust setpoints and perform manual control locally. Remote control via other DCS workstations remains available, but cabinet-side local operation is lost. The ABB PP836A is a 6.5-inch color keypad HMI belonging to the ABB Panel800 Version5.1 operator panel family. It features a 640×480 TFT color LCD with CCFL backlight and integrated metal-dome membrane keypad. Designed for front-of-cabinet panel mounting, its front face is rated IP66 for dust and splash protection suitable for control room and plant floor environments. It communicates with AC800M DCS controllers over Ethernet or serial links to read real-time process variables, alarm lists, trends and enable operator setpoint adjustments, valve/device manual operation and alarm acknowledgement. Application screens are developed and downloaded using ABB Panel Builder engineering software. An on-board real-time clock maintains time stamping for alarms and events. Widely used in power, pulp & paper, chemical and water treatment plants as local cabinet HMI for ABB DCS systems. Plant maintenance teams hold spare PP836A panels to restore local operator interface quickly during scheduled maintenance.

• Best Suited For
  • ABB AC800M and Freelance DCS control cabinets
  • Local plant-floor / cabinet-side process monitoring, alarm handling and manual operator control
  • Direct drop-in replacement for existing ABB PP836A (3BSE042237R2) Panel800 keypad HMI hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm hardware revision and HMI project backup before replacement; the existing Panel Builder application must be downloaded to the replacement PP836A.
• Disconnect 24VDC power before removing the unit; avoid hot removal while live DCS communication is active.
• Check gasket integrity during re-installation; damaged gaskets will void the IP66 rating and allow dust/moisture ingress.
• After replacement, download the HMI application, verify network connection to AC800M, validate all screen tags, alarm acknowledgement and manual control functions.
• ESD protection required while handling rear PCB and communication connectors.
• Backlight degradation is the most common failure mode; inspect backlight brightness as part of routine preventive maintenance.

Adaptive QA & Testing Protocol

Each PP836A HMI is bench tested with ABB AC800M DCS test setup. We verify 24VDC power-up, LCD display quality and full membrane keypad function. Ethernet and serial communication links to controller are validated. Panel Builder project download/upload is tested. RTC battery and timekeeping are checked. Front IP66 gasket, aluminum housing and connectors are visually inspected. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB PP836A used for? A: It is a Panel800 6.5-inch keypad HMI for ABB AC800M / Freelance DCS, used as local cabinet operator panel to view process data, acknowledge alarms and perform manual control.

Q: What warranty applies for refurbished and NSFP PP836A? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, cracked overlay/gasket, backlight burnout, corrupted HMI application and improper panel cutout installation.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB PP836A panels.

Q: Can PP836A work with PLC brands other than ABB? A: It is primarily engineered and commonly paired with ABB AC800M DCS. While Panel800 supports limited third-party communication, it is not the standard use case.
