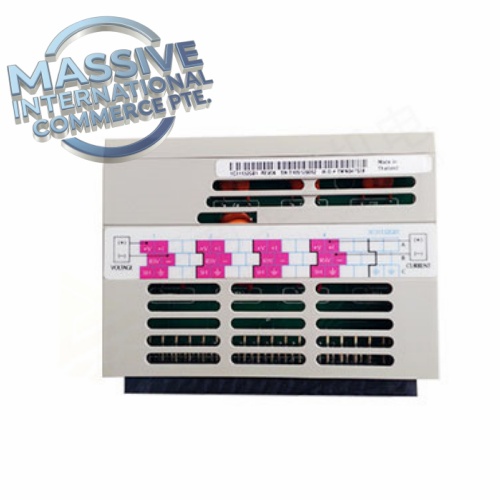

5X00321G01 Ovation DCS Profibus DP Fieldbus Interface Card

Description

Product Overview

The Emerson Ovation 5X00321G01 is a Profibus-DP communication interface module for the Ovation distributed control system. It bridges the Ovation controller backplane and Profibus-DP fieldbus network, supporting real-time cyclic data exchange with remote I/O racks, variable frequency drives, valve positioners and intelligent field transmitters. The module handles bus scanning, data mapping and device diagnostic reporting. It is deployed in power generation, pulp & paper and chemical processing plants. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for Ovation control racks.

Technical Specifications

Engineer Notes

• This is a fully integrated communication module; no separate personality card required. Hot-swap can be performed when site lockout/tagout procedures are followed.
• Front panel LEDs indicate module health, backplane link status and Profibus-DP bus activity. Slave dropout, bus noise and communication timeouts are sent as alarms to the Ovation controller.
• Install bus terminators at the two physical endpoints of the Profibus-DP segment. Missing or duplicate termination is the most common root cause of intermittent bus faults.
• Use shielded Profibus-DP twisted pair cable. Separate fieldbus wiring from high-current AC and relay cables to reduce electrical interference.
• Configure slave addresses, cyclic data mapping and watchdog timers in the Ovation system database before commissioning. Match firmware compatibility between the interface module and controller.
• Apply ESD controls while handling. De-energize rack power before module removal or insertion if hot swap is not approved. After replacement, run bus scan, confirm all slaves are detected and validate bidirectional data transfer.

Pre-Shipment Test Protocol

1. Visual inspection: Check PCB, edge connector, front panel LEDs, D-Sub port and housing for bent pins, corrosion or component damage.
2. Continuity and isolation test: Verify 500VAC isolation between Profibus field circuit and Ovation backplane circuits.
3. Functional bench test: Mount module in Ovation rack, connect Profibus-DP slave simulators, execute bus scan and confirm slave detection. Validate cyclic read/write data exchange.
4. Fault simulation: Disconnect bus cable and remove slave devices; confirm module reports bus faults to Ovation controller.
5. Power cycling: Cycle 24VDC rack power 10 times, confirm module re-establishes Profibus communication after each restart.
6. Save test logs and photos for QA records.

Buyer FAQ

Q: Can I swap 5X00321G01 directly with 5X00300G02 Profibus module? A: Physical form fits the same rack slot. Confirm controller firmware version, database mapping and bus topology before cutover. Check firmware and hardware revision compatibility.

Q: Does this module support redundant Profibus-DP networks? A: Redundancy is determined by overall system design, slave hardware and wiring layout. Refer to plant control drawings for redundant bus requirements.

Q: Is this new original Emerson factory stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.

Q: Are Profibus bus cable or terminators included? A: Bus cable and terminators are not included unless explicitly noted on your quote. Confirm these accessories at order placement.
