Description
At-A-Glance Executive Brief

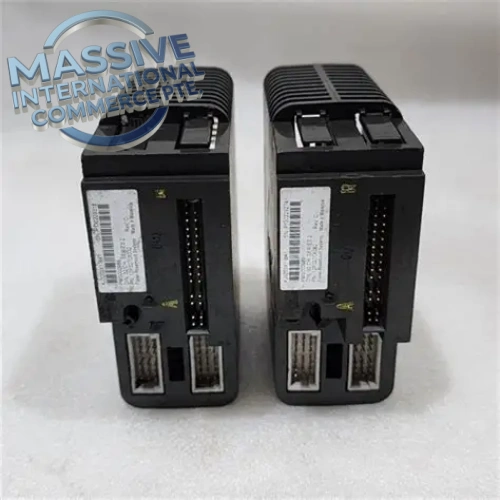

- Model: 1D54561G02
- Brand: Emerson Ovation (Westinghouse)
- Part Type: LIM Loop Interface Module (3LIM4 Single Loop)
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation Q Crate / Q-line DPU rack
- Sub-assembly: Equipped with 7381A27G01 daughterboard
- Core function: Single control loop interface between Ovation DPU and remote I/O, responsible for loop data transmission, link management and communication diagnostics
Technical Introduction
The 1D54561G02 is a 3LIM4 single-loop LIM module for Ovation Q crate DPU systems. It acts as the dedicated communication bridge between the DPU and field I/O loop. It handles real-time control command distribution, process value acquisition, loop status monitoring and fault reporting. This hardware is widely deployed on legacy thermal power and combined-cycle Ovation systems to maintain reliable communication between the controller and distributed I/O devices.
Engineer’s Takeaway This is a single-loop LIM, while 1D54561G01 is dual-loop version. The two versions differ in backplane pin definition and port allocation and cannot be directly swapped. It only fits Ovation Q crate DPU racks and is incompatible with standard Ovation I/O racks.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1D54561G02 |
| Module Type | LIM Loop Interface Module (3LIM4 Single Loop) |
| Daughterboard | 7381A27G01 |
| Rack Type | Ovation Q Crate / Q-line DPU rack |
| Loop Capacity | 1 control loop |
| Main Function | DPU and I/O loop data exchange, link supervision, error diagnostics |
| Diagnostics | Module self-test, link break detection, communication error alarm |
Field Engineer’s Tech Notes
- Before replacement, set the DPU to safe state and enable bypass where required to avoid unit disturbance from loop interruption.
- Distinguish single-loop 1D54561G02 and dual-loop 1D54561G01. Mismatched hardware will cause complete loop communication failure.
- Inspect backplane pins for bending or oxidation before power-up. The LIM loop cable shield should be single-point grounded; multi-point grounding introduces noise and intermittent packet loss.
- After installation, run DPU and loop self-diagnostics. Confirm no communication alarms before returning the system online.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing for Ovation Q crate compatibility. Module self-test and simulated DPU handshake are executed. Single-loop transmit/receive test verifies data integrity. Communication fault simulation validates diagnostic alarm function. Edge connector inspection checks for bent or corroded pins. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: What is the difference between 1D54561G02 and 1D54561G01? A: 1D54561G02 is single-loop LIM; 1D54561G01 is dual-loop LIM. They have different daughterboard configuration and backplane wiring and are not interchangeable.
Q: What warranty applies to new surplus or refurbished Emerson 1D54561G02? A: All units carry a 12-month hardware warranty. Warranty excludes damage caused by backplane short, miswiring, incompatible rack and surge damage.
Q: Can 1D54561G02 be installed in standard Ovation I/O rack? A: No. It is designed exclusively for Ovation Q crate DPU rack and cannot work on standard Ovation I/O racks.
Q: What lead time applies to this obsolete Ovation LIM module? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
