At-A-Glance Executive Brief

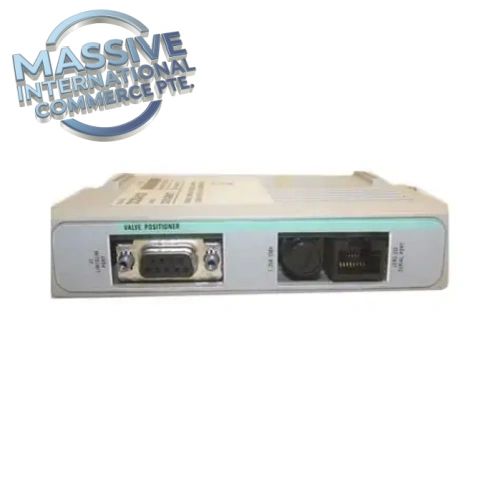

- Model: 1C31197G01
- Brand: Emerson Ovation
- Part Type: Valve Positioner Personality Module (P-Mod)
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation Strategy I/O rack, paired with 1C31194G01 E-Module
- Core function: LVDT and servo coil terminal interface, signal conditioning
Technical Introduction
Improper terminal wiring and impedance matching on electro-hydraulic valve loops is a common source of valve hunting and unstable feedback readings. This personality module mates exclusively with the 1C31194G01 valve positioner electronics module to provide the field wiring interface for LVDT position sensors and servo valve coils. It defines terminal pin assignments, impedance matching, and signal filtering for the LVDT excitation and servo drive signals. Installed into the Ovation Strategy I/O rack base first, it routes the 1kHz LVDT excitation from the E-module out to the field sensor and returns LVDT feedback, while carrying the servo drive signal to the hydraulic valve coil.
Engineer’s Takeaway This personality module is not interchangeable with standard AO or AI personality modules. It must be matched with the 1C31194G01 E-module. Using any other P-mod breaks LVDT excitation and servo coil drive circuits, and will result in valve loop failure.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31197G01 |
| Module Type | Valve Positioner Personality Module |
| Compatible E-Module | 1C31194G01 Valve Positioner E-Module |
| Mounting | Ovation Strategy I/O rack base, installed before E-module |
| Signal Paths | LVDT excitation/feedback + servo coil drive terminals |
| Field Interface | Terminal block for LVDT and servo coil wiring |
| Backplane Power | 24 VDC via paired E-module |
Field Engineer’s Tech Notes
- Separate LVDT sense cables from servo coil power wiring. Inductive coupling on shared cable trays distorts LVDT feedback and creates slow valve drift that does not trigger rack fault alarms. Use shielded twisted pair for LVDT wiring.
- Verify servo coil impedance matches this personality module’s design rating. Mismatched coil impedance causes overcurrent, excess heat, and premature damage to the E-module’s servo drive outputs during stroke tests.
Adaptive QA & Testing Protocol
Each unit undergoes bench validation when paired with a compatible 1C31194G01 E-module. We check continuity and insulation resistance across all LVDT and servo coil terminals. LVDT excitation signal routing is verified to confirm correct signal transfer between E-module and personality terminals. Backplane handshake confirms the E-module correctly identifies the personality hardware. Pin inspection checks for bent or corroded edge connectors. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31197G01 work with any Ovation AO or AI E-module? A: No. It is purpose-built only for pairing with 1C31194G01 valve positioner E-module. It cannot be used for standard analog input or output functions.
Q: What warranty applies to new surplus or refurbished Emerson 1C31197G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage from field wiring shorts, overloaded servo coils, or pairing with incompatible electronics modules.
Q: Does this personality module include LVDT sensor or servo valve coil? A: No. It is only the terminal interface personality base. LVDT and servo coils are separate field-mounted hardware.
Q: What lead time applies to this obsolete Ovation valve positioner personality module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
