Description
At-A-Glance Executive Brief
- Model: 1C31125G02
- Brand: Emerson Ovation

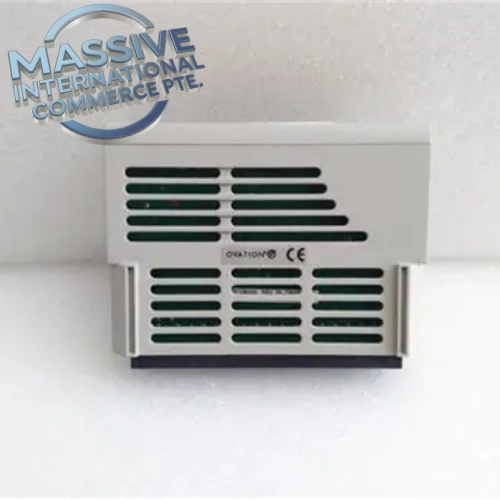

- Part Type: 16-channel Digital Output Electronics Module
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack platform
- Output type: Transistor switched 24VDC discrete outputs
Technical Introduction
Inductive field loads create transient voltage spikes that damage unprotected discrete output channels during repeated cycling. This Ovation digital output electronics module receives on/off logic commands from the Ovation controller over the rack backplane and drives 16 independent 24VDC field channels. It must be installed with a matched personality base that provides terminal connections and channel isolation. Built-in per-channel diagnostics report short-circuit and overload conditions back to the Ovation controller, so maintenance teams can isolate failed channels without full rack shutdown.
Engineer’s Takeaway This E-module only switches the 24VDC field circuit; it does not supply field power. The personality base defines terminal pin assignments and fault reporting behavior, so mismatched bases will disable diagnostic feedback even if the module physically seats in the rack.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31125G02 |
| Module Type | Digital Output Electronics Module |
| Channel Count | 16 |
| Field Load Voltage | 24 VDC nominal |
| Output Switch Type | Transistor |
| Per-channel diagnostics | Short circuit, overload detection |
| Mounting | Ovation I/O rack, paired with matching DO personality base |
| Backplane Power | 24 VDC |
Field Engineer’s Tech Notes
- Always add suppression diodes across solenoid and relay coil terminals. Unsuppressed inductive kickback will degrade transistor switches and trigger intermittent overload faults that appear only after thousands of switching cycles.
- When replacing the module in an active rack, lock out field 24VDC power first. Backplane power can remain active, but live field voltage at terminals risks shorting adjacent channels during module extraction or insertion.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing by sending discrete on/off commands to all 16 channels. We apply 24VDC simulated field loads and verify switching state, channel status LEDs and fault alarm response for shorted conditions. Backplane communication handshake confirms rack registration and diagnostic reporting to an Ovation I/O controller. Terminal pin continuity checks identify bent pins or damaged PCB traces. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31125G02 replace the 1C31122G01 DO module? A: It fits the same Ovation rack slot, but channel count, voltage rating and personality base requirements differ. Update I/O mapping and confirm your personality base compatibility before commissioning.
Q: What warranty applies to new surplus or refurbished Emerson 1C31125G02? A: All units carry a 12-month hardware warranty. Warranty excludes damage from field overvoltage, shorted wiring, or use with incompatible personality bases.
Q: Does this module provide 24VDC field supply for connected loads? A: No. External 24VDC field power must be wired to the personality base terminals. The module functions solely as a solid-state switch.
Q: What lead time applies to this obsolete Ovation DO electronics module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
