Description
At-A-Glance Executive Brief

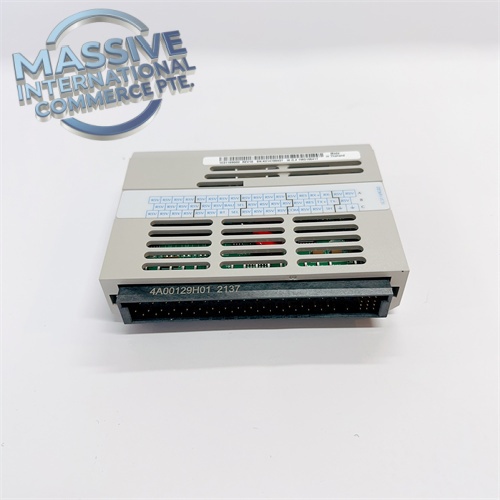

- Model: 1C31169G02
- Brand: Emerson Ovation
- Part Type: Dual-port Serial Link Controller Electronics Module
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack platform
- Communication: 2 serial ports supporting RS232, RS422, RS485 via personality module
Technical Introduction
Legacy plant auxiliary equipment often relies on serial protocols that consume excessive controller scan time when polled directly. This link controller offloads serial polling and protocol processing from the main Ovation controller. It mounts in a standard Ovation I/O rack and pairs with a matching personality module to define serial electrical standards and terminal connections. The module has two independent serial ports to connect RTUs, vibration monitors, auxiliary PLCs and third-party instrumentation. It buffers inbound and outbound data locally and exchanges processed point values over the Ovation I/O backplane.
Best Suited For
- Power plant Ovation DCS rack spare stocking and obsolescence mitigation
- Modbus, DNP3 and ASCII serial communication with auxiliary field subsystems
- Legacy system migration where serial devices must remain connected to Ovation DCS
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31169G02 |
| Module Type | Dual-port Serial Link Controller Electronics Module |
| Port Count | 2 independent serial ports |
| Serial Interfaces | RS232, RS422, RS485 (selected by personality module) |
| Mounting | Ovation I/O rack, paired with matching LC personality module |
| Backplane Power | 24 VDC |
| Max Baud Rate | 115.2 kbps |
| Supported Protocols | Modbus, DNP3, ASCII |
Please refer to the OEM datasheet for complete environmental tolerances.
Field Engineer’s Tech Notes
- RS485 multi-drop networks require terminating resistors only at the two physical endpoints of the bus. Extra terminators reduce signal amplitude and create intermittent communication drops that appear under temperature fluctuations.
- Each serial port uses separate configuration parameters. When restoring from backup, verify baud rate, parity, stop bits and slave address for both ports. Mismatched port settings produce garbled data without generating rack fault alarms.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing paired with a compatible Ovation link controller personality module. We run serial loopback tests on both ports and validate transmit/receive performance across multiple baud rates. Modbus slave node handshake verifies protocol handling and data register read/write functions. Backplane communication handshake confirms rack registration and diagnostic reporting. Terminal pin continuity checks identify bent pins or damaged PCB traces. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31169G02 replace 1C31166G01 link controller? A: It fits the same Ovation rack slot, but firmware and personality requirements differ. Confirm personality module compatibility and load the correct link controller firmware before commissioning.
Q: What warranty applies to new surplus or refurbished Emerson 1C31169G02? A: All units carry a 12-month hardware warranty. Warranty excludes damage from serial bus overvoltage, misconfigured serial parameters, or mismatched personality hardware.
Q: Does this module ship preloaded with serial protocol firmware? A: Firmware is not preloaded. The correct protocol firmware must be downloaded from Ovation engineering workstation to match connected field devices.
Q: What lead time applies to this obsolete Ovation link controller module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
