Description
At-A-Glance Executive Brief

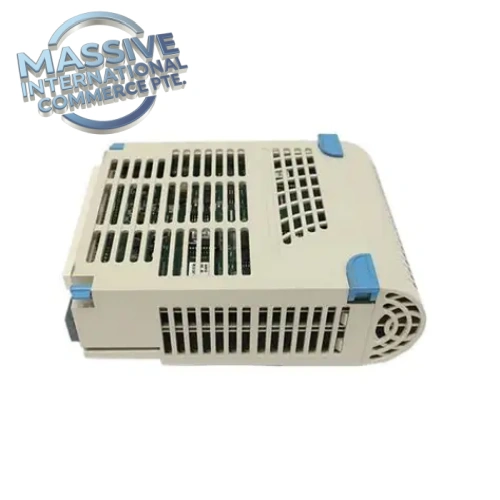

- Model: 1C31166G01
- Brand: Emerson Ovation
- Part Type: Serial Link Controller (LC) Electronics Module
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack platform
- Required accessory: Matching personality module for serial port definition
Technical Introduction
Legacy plant subsystems often use serial RS232 or RS485 interfaces that cannot connect directly to the main Ovation controller backplane. This link controller acts as a dedicated serial gateway between the Ovation DCS and external devices such as RTUs, auxiliary PLCs, vibration monitors and third-party instrumentation. It mounts in the Ovation I/O rack and pairs with a personality module that defines serial hardware type, port wiring and signal levels. The module handles serial protocol translation and data buffering locally, offloading serial polling tasks from the main Ovation controller and preventing scan delays caused by slow serial field devices.
Engineer’s Takeaway The link controller’s port hardware and electrical standards are set entirely by its personality module. A 1C31166G01 E-module without the correct personality module will not establish serial communication, even if it powers up and registers on the rack backplane.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31166G01 |
| Module Type | Serial Link Controller Electronics Module |
| Mounting | Ovation I/O rack, paired with matching LC personality module |
| Backplane Power | 24 VDC |
| Supported Serial Types | RS232, RS422, RS485 (selected by personality module) |
| Function | Serial data buffering, protocol handling, backplane data exchange |
| Diagnostics | Backplane status, serial link fault reporting |
Please refer to the OEM datasheet for complete environmental tolerances.
Field Engineer’s Tech Notes
- RS485 multi-drop wiring requires proper line termination at the bus endpoints. Missing or incorrectly fitted 120Ω terminators create data corruption, dropped frames and intermittent link timeouts that vary with plant temperature swings.
- Configure serial baud rate, parity and stop bits to match the remote subsystem before commissioning. Mismatched serial parameters produce garbled data with no rack-level fault alarm, making the issue hard to isolate from the Ovation operator screen.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing paired with a compatible Ovation link controller personality module. We connect serial test hardware to validate frame transmit and receive functions at multiple baud rates. Backplane communication handshake verifies rack registration and fault reporting. Continuity checks inspect the edge connector pins for damage. Serial loopback testing confirms transmit/receive path integrity. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31166G01 serve as a direct replacement for other Ovation communication modules? A: It fits the same Ovation rack slot, but it is purpose-built for serial link tasks. Confirm personality module compatibility and load the correct link controller application firmware before commissioning.
Q: What warranty applies to new surplus or refurbished Emerson 1C31166G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage from serial bus overvoltage, misconfigured serial settings, or mismatched personality modules.
Q: Does this link controller come preloaded with serial protocol firmware? A: The module requires application firmware loaded via Ovation engineering tools. Firmware must match the target external device and personality module hardware.
Q: What lead time applies to this obsolete Ovation link controller module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
