Description
Product Overview

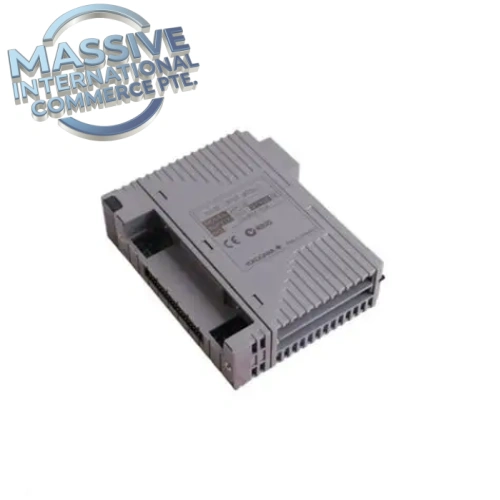

Part Number: EC401-50 Manufacturer: Yokogawa (Yokogawa Electric, Japan) Product Series: CENTUM VP DCS, FIO ESB Bus Coupler Module Type: ESB Bus Coupler Module This EC401-50 ESB bus coupler module is a core communication component for Yokogawa CENTUM VP DCS FIO (Field Input/Output) nodes. It connects the FIO field node to the control node via ESB bus, enabling high-speed bidirectional data exchange between the controller and remote FIO I/O modules. Dual EC401-50 modules can be deployed for redundant bus communication to eliminate single-point failure. Widely applied in petrochemical, power, oil & gas, and pulp & paper process control systems, delivering stable real-time control and monitoring data transmission.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | EC401-50 |
| Product Type | ESB Bus Coupler Module |
| Applicable System | Yokogawa CENTUM VP DCS, FIO node |
| Bus Interface | ESB bus port |
| Redundancy Support | Dual redundant hot-swap capable |
| Mounting | DIN rail rack mount |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Power Supply | Supplied from FIO node power unit |
| Hot Swap | Yes, can be replaced online without system shutdown |
| Dimensions | 267(W) × 107(H) × 302(D) mm |
| Weight | Approx 3kg |
| Compliance | EMC, CE certification |
Engineer Notes
- EC401-50 is exclusively used for CENTUM VP FIO node ESB bus connection, incompatible with older CS3000 FCS bus architecture.
- Redundancy configuration: install two EC401-50 modules in one FIO node for ESB bus redundancy; automatic switchover upon one module fault with no interruption to control.
- Supports hot-swap replacement. Module can be pulled and replaced while the DCS system remains online.
- Route ESB bus cable separately from high voltage power wiring to avoid electromagnetic interference and communication dropout.
- Ensure rack ground connection is properly implemented to reduce noise and protect communication chipset.
- Check module status LED indicators for diagnosis of power, link, fault and redundant status during commissioning and routine maintenance.
- Only match with Yokogawa SB401 ESB interface module for controller-side ESB bus connection.
Pre-Shipment Test Protocol
- Power-on functional test, LED status verification
- ESB bus communication link test with FIO I/O modules
- Redundancy switchover simulation test
- Hot swap function verification
- Continuity and insulation inspection of internal circuits
- Visual inspection of housing, connectors, label and part marking
- Anti-static & shockproof packaging inspection
Buyer FAQ
Q: Is EC401-50 new original? A: We supply brand new original Yokogawa units, 12-month warranty, factory test certificate available on request.
Q: What does suffix -50 mean? A: -50 represents standard type ESB bus coupler for FIO node, non-explosion proof version.
Q: Can EC401-50 work with CENTUM CS3000? A: No. EC401-50 is designed for CENTUM VP FIO nodes. CS3000 uses different bus coupler hardware.
Q: Does this module support redundancy? A: Yes. Two EC401-50 can be installed in the same FIO node to achieve ESB bus dual redundancy.
