Product Overview

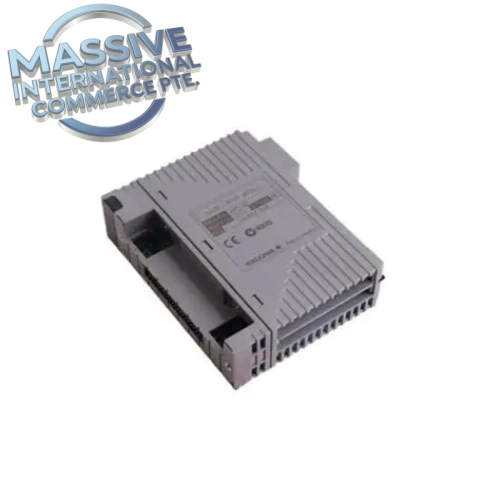

Part Number: CP451-10 Manufacturer: Yokogawa (Yokogawa Electric, Japan) Product Series: CENTUM VP DCS, FCS Field Control Station Type: Processor / CPU Module CP451-10 is the core processor module for Yokogawa CENTUM VP AFV10S/AFV10D field control station. It is the computing brain of FCS, responsible for executing PID regulatory control, sequence logic, interlock protection, field I/O data processing, alarm and trend calculation. It communicates with HIS operator stations, engineering stations via dual redundant Vnet/IP, and interacts with FIO/N-IO I/O nodes through ESB bus. Two CP451-10 modules can be configured as 1:1 hot standby redundancy; bumpless automatic switchover occurs if the primary CPU fails without process interruption. Widely used in petrochemical, power, oil & gas and chemical continuous process plants. Supports hot-swap replacement while FCS online.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | CP451-10 |
| Module Type | FCS Processor (CPU) Module |
| Applicable System | Yokogawa CENTUM VP, AFV10S / AFV10D Field Control Unit |
| CPU | 32-bit RISC processor |
| Main Memory | 128MB standard |
| Network Interface | Dual Vnet/IP (100Mbps Ethernet) |
| Redundancy | 1:1 hot standby redundancy support |
| Hot Swap | Yes, online replacement |
| Scan Cycle | Minimum 10ms for control loops |
| Power Supply | 24VDC from FCS backplane |
| Power Consumption | Approx 20W |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Weight | Approx 0.45kg |
| Certification | CE, UL |
Engineer Notes
- CP451-10 is dedicated processor for CENTUM VP AFV series FCS; compatible with FIO and N-IO I/O nodes.
- Redundancy configuration: install two CP451-10 in FCS rack. Primary/standby run synchronously; bumpless switchover upon primary fault, control continues without interruption.
- Equipped with backup battery for retaining control program and process variables when power loss occurs; check battery status periodically for preventive maintenance.
- Dual Vnet/IP ports for redundant control network, isolate control network from office IT network to avoid communication interference.
- Supports hot swap. Faulty CP451-10 can be pulled out and replaced while FCS remains online.
- Front panel LED indicators show power, run, standby, network link, fault status for quick on-site diagnosis.
- Not compatible with older CS3000 FCS hardware; CS3000 uses different CP series processor modules.
Pre-Shipment Test Protocol
- Power-on self-test, LED status verification
- Control logic & PID loop simulation test
- Vnet/IP dual network communication test
- 1:1 redundancy automatic switchover simulation test
- Hot swap function verification
- Internal memory and circuit continuity inspection
- Visual inspection of housing, connectors, label and marking
- Anti-static & shockproof packaging inspection
Buyer FAQ
Q: Is CP451-10 new original? A: We supply brand new original Yokogawa units, 12-month warranty, factory test certificate available on request.
Q: What does suffix -10 mean? A: -10 stands for standard basic version of CP451 processor for AFV FCS.
Q: Can CP451-10 work in redundant pair? A: Yes, two CP451-10 can be installed in one AFV FCS for 1:1 hot standby redundant control.
Q: What is the difference between CP451 and CP461? A: CP451 is standard processor for AFV10; CP461 is higher-performance processor for larger-scale heavy load control applications.
