Description
Product Overview

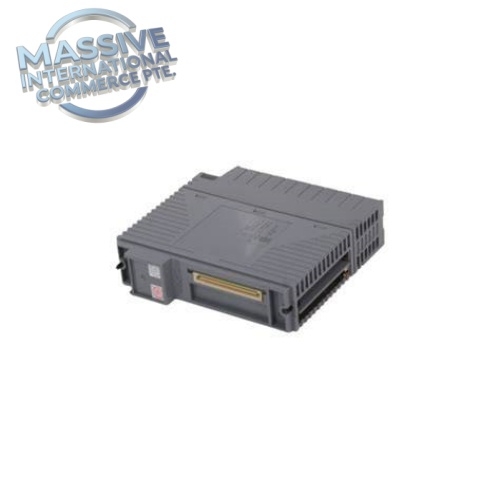

The EB401-10 is an ER (Ethernet Remote) Bus master interface module manufactured by Yokogawa for CENTUM CS3000 DCS platform. It acts as the communication gateway between the local ESB bus of the Field Control Station (FCS) and remote ER bus I/O nodes, delivering deterministic real-time data transmission for distributed remote I/O subsystems. This rack plug-in module uses 10 Mbps coaxial ER bus with BNC connectors to extend control I/O over long distances in process plants.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Part Number | EB401-10 (EB401-10 S1 suffix version) |
| Product Type | ER Bus Interface Master Module |
| Compatible System | CENTUM CS3000 DCS |
| Bus Speed | 10 Mbps |
| Connector | BNC for coaxial cable |
| Max Cable Length | 185 m per ER bus segment |
| Power Supply | Powered through rack backplane |
| Current Consumption | 0.7 A |
| Weight | 0.3 kg |
| Operating Temperature | -10 °C ~ +60 °C |
| Humidity | 5%–95% RH, non-condensing |
| Mounting | Hot-pluggable slot mounting in FCS rack |
Key Features
- ER Bus Master Control: Manages polling and deterministic communication for multiple remote ER I/O nodes.
- Coaxial BNC Interface: 10 Mbps coaxial ER bus for reliable transmission in electrically noisy plant environments.
- Hot Swap Support: Module can be replaced online without shutting down the entire FCS.
- Built-in Diagnostics: LED status indicators for power, bus link and fault alarms; continuous communication error detection.
- System Isolation: Electrical isolation between ESB backplane and ER field bus to suppress noise interference.
- Distributed I/O Extension: Lets FCS deploy remote I/O racks away from the main control cabinet.
Applications
- Petrochemical and refinery DCS remote I/O
- Power plant boiler and turbine control systems
- Oil & gas process monitoring and control
- Pulp & paper, water treatment continuous process control
Installation & Maintenance Notes
- Install the EB401-10 into an available slot of Yokogawa FCS rack.
- Use 50Ω coaxial cable with BNC termination for ER bus wiring; proper termination is mandatory.
- Keep ER bus cable away from high-voltage power cables to avoid electromagnetic interference.
- Check module LED indicators regularly for link failures or bus errors during routine maintenance.
- Verify bus segment length and number of nodes to comply with Yokogawa ER bus specification.
FAQ
Q: What is the difference between EB401-10 and EB401-10 S1? A: S1 is the revised hardware version with component upgrades, functionally compatible and interchangeable for most CS3000 installations.
Q: Can EB401-10 be used on CENTUM VP? A: No, it is designed for CENTUM CS3000 only; VP uses different bus interface hardware.
