Yokogawa ADV169-P00 | CENTUM ST6 64-Channel Isolated Digital Input Module In Stock

Description

At-A-Glance Executive Brief

• Model: ADV169-P00
• Brand: Yokogawa

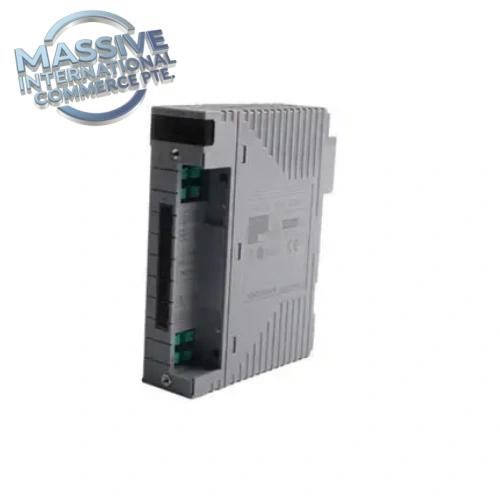

• Part Type: 64-channel isolated digital input module for CENTUM ST6 DCS
• Lifecycle status: Legacy DCS I/O module; stocked for brownfield Yokogawa CENTUM ST6 retrofits
• System compatibility: Yokogawa CENTUM ST6 DCS; collects dry contact/voltage status from field switches, relays and valve limit sensors; channel status and fault diagnostics uploaded to DCS HMI
• Weight: ~0.3 kg

Technical Introduction

Failure of ADV169-P00 will lose discrete status acquisition for all 64 input points. DCS cannot read valve limit positions, motor run/stop feedback, interlock contact status and alarm contacts. The DCS raises module fault alarms and missing tag bad quality, which may break sequence logic, inhibit startup or hide critical process interlock conditions. The Yokogawa ADV169-P00 is a high-density 64-channel isolated digital input module designed for Yokogawa CENTUM ST6 DCS. It adopts grouped wiring architecture with common minus side for each 16-channel bank and provides galvanic isolation between groups to suppress electrical noise and ground loop interference. It accepts dry contact or 5VDC voltage input signals from field devices such as limit switches, relay contacts, local pushbuttons and interlock switches. The module converts field on/off status into digital data and transmits to the DCS controller over the ST6 I/O bus. It supports pushbutton input and fallback functions, continuously monitors module health and channel fault conditions. All discrete status and diagnostic alarms are sent to the CENTUM control station and operator HMI for process monitoring, event logging and asset health tracking. Widely deployed in petrochemical, oil & gas, power, pulp & paper plants running Yokogawa CENTUM ST6 control systems. Plant reliability teams hold spare ADV169-P00 modules to restore discrete input monitoring quickly during planned outages.

• Best Suited For
  • Yokogawa CENTUM ST6 DCS I/O racks
  • Dry contact discrete status acquisition for valve limit switches, motor feedback, interlock relays and field pushbuttons
  • Direct drop-in replacement for existing Yokogawa ADV169-P00 ST6 digital input hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm hardware style, ST6 rack firmware and KS9 dedicated signal cable compatibility before replacement. ADV169-P00 is ST6 bus module and cannot replace ST7 ADV569 series.
• Lockout/tagout and interlock bypass procedures must be applied before removing the module to avoid loss of safety interlock visibility.
• Check field wiring insulation and shield grounding; ground loops and induced noise commonly cause unstable contact readings.
• After replacement, download DCS hardware configuration, execute full channel loop tests, validate on/off status feedback to DCS tags and clear fault alarms before removing bypasses.
• ESD protection required while handling the module PCB and edge connector.
• Verify contact resistance of field dry contacts; high contact resistance will cause unreliable ON/OFF detection.

Adaptive QA & Testing Protocol

Each ADV169-P00 module is bench tested on Yokogawa ST6 DCS test rack. We verify backplane communication and controller recognition. All 64 channels are tested with contact simulator for ON/OFF status capture. Group isolation resistance is measured. Front panel status LEDs, watchdog and fault reporting functions are verified. PCB, edge connector and solder joints are visually inspected. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is Yokogawa ADV169-P00 used for? A: It is a 64-channel isolated digital input module for Yokogawa CENTUM ST6 DCS, collecting dry contact and 5VDC discrete status from limit switches, relays and interlock devices.

Q: What warranty applies for refurbished and NSFP ADV169-P00? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, field wiring noise, poor contact resistance, improper DCS configuration and incompatible ST6 rack firmware.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus Yokogawa ADV169-P00 modules.

Q: Can ADV169-P00 be used with ST7 I/O racks? A: No, this is ST6 bus dedicated DI module; ST7 digital output counterpart is ADV569-P00. They are not cross-compatible.
