Description
At-A-Glance Executive Brief
- Model: 8237-1246
- Brand: Woodward
- Part Type: ProTech-GII bulkhead mounted triple modular redundant (TMR) overspeed protection device
- Lifecycle status: Critical turbine safety spare; stocked for brownfield steam, gas and hydro turbine retrofits and power plant maintenance
- System compatibility: Turbine magnetic pickup (MPU) / proximity speed probes; 2oo3 voting trip relays, 4-20mA speed analog output, serial communication to DCS/SCADA for overspeed protection
- Weight: ~12.2 kg
Technical Introduction
Failure of 8237-1246 disables the turbine overspeed protection function. The unit loses ability to monitor shaft rotational speed and execute 2-out-of-3 voted trip logic. Critical overspeed and over-acceleration protection becomes unavailable, triggering safety system faults. Unprotected turbine over-speed can lead to catastrophic mechanical failure of rotors and plant assets.

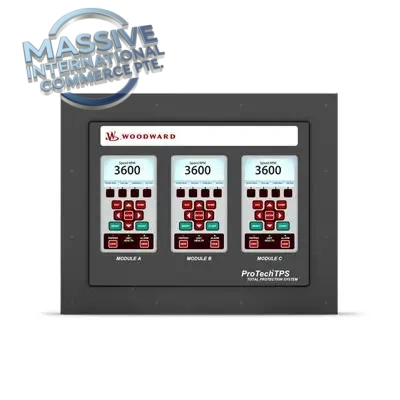

Woodward 8237-1246 belongs to the ProTech-GII overspeed protection family, a TMR safety system built for rotating machinery protection compliant with API 670. It features three fully independent monitoring modules (Module A/B/C), each accepting speed signals from magnetic pickups or active proximity probes. The unit uses 2-out-of-3 voting logic for trip decisions to reduce false trips while maintaining high safety integrity. It detects overspeed and over-acceleration conditions and energizes voted trip relays to shut down the turbine within 12ms response time. It provides isolated 4–20mA speed readback, local front-panel displays and keypad for setup, diagnostics and real-time speed viewing. Event and trip history recording stores fault logs for post-trip analysis. Serial communication enables integration with plant DCS and SCADA systems for remote monitoring and alarm reporting. This bulkhead mount IP56 enclosure is suitable for turbine deck environments, widely deployed in power generation, oil & gas and petrochemical plants for steam, gas and hydro turbines. Plant reliability teams stock 8237-1246 to restore turbine overspeed safety protection during planned outages or unexpected unit faults.
- Best Suited For
- Steam, gas and hydro turbine overspeed protection applications
- API 670 rotating machinery safety, 2oo3 voted trip protection, local speed indication and DCS speed monitoring
- Direct drop-in replacement for existing Woodward ProTech-GII 8237-1246 bulkhead overspeed protection assembly
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 8237-1246 |
| Manufacturer | Woodward |
| Product Family | ProTech-GII |
| Architecture | Triple Modular Redundant (TMR), 2-out-of-3 voting |
| Mounting | Bulkhead mount |
| Enclosure Rating | IP56 |
| Speed Range | 0.5 ~ 32000 rpm |
| Speed Inputs | 3 inputs (one per module), MPU or active proximity probe |
| Trip Response Time | 12 ms |
| Analog Output | 1 channel 4–20mA speed readback |
| Power Supply | HV/LV: 90–264VAC or 100–150VDC |
| Display & HMI | Three independent 4.2” LCD + keypad |
| Operating Temperature | -20℃ ~ +60℃ |
| Compliance | API 670 |
| Feature | Event recording, module self-test, on-line module replacement |
| Weight | ~12.2 kg |
| Environmental Details | Please refer to the OEM datasheet for complete environmental tolerances. |
Field Engineer’s Tech Notes
- Confirm turbine speed probe type, unit firmware revision, trip setpoints and safety logic before replacement; 8237-1246 setpoints must match turbine safety requirements.
- Apply turbine protection bypass and lockout/tagout procedures before removing the overspeed unit; turbine overspeed protection will be disabled during replacement.
- Inspect MPU/proximity probe wiring and terminal connections; loose wiring or degraded pickup probes are common causes of speed signal dropout faults.
- After installation, configure overspeed setpoints, perform full trip simulation test, verify 4-20mA speed readback to DCS, check event logging, validate 2oo3 voting operation, clear faults and remove bypass before returning turbine to online operation.
- ESD protection required while handling internal PCB modules.
- Perform periodic module self-test as per Woodward manual; degraded trip relays and speed input circuits are common wear modes.
Adaptive QA & Testing Protocol
Each 8237-1246 ProTech-GII overspeed unit is bench tested on Woodward speed signal simulator test rig. We verify multi-module power-up, MPU/probe speed input simulation across full rpm range, 2oo3 voting trip function, relay output actuation, 4–20mA analog speed output and event recording. Front panel display, keypad and serial communication interfaces are validated. Internal PCBs, terminal blocks and enclosure are visually inspected for corrosion, scratches or thermal damage. Full test reports are available upon request.
Buyer’s FAQ
Q: What is Woodward 8237-1246 used for? A: It is a TMR 2-out-of-3 voted overspeed protection system (ProTech-GII) to monitor turbine shaft speed and trigger safe shutdown for steam, gas and hydro turbines per API 670.
Q: What warranty applies for refurbished and NSFP 8237-1246? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, wiring surge damage, improper bypass procedures, wrong speed probe matching and incorrect trip setpoint configuration.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, we source surplus Woodward 8237-1246 assemblies.
Q: Can individual modules be replaced without shutting down the whole turbine? A: Yes, ProTech-GII supports hot swap of single A/B/C module while the unit remains in service, but safety bypass procedures must be strictly followed.
