Description
Product Overview

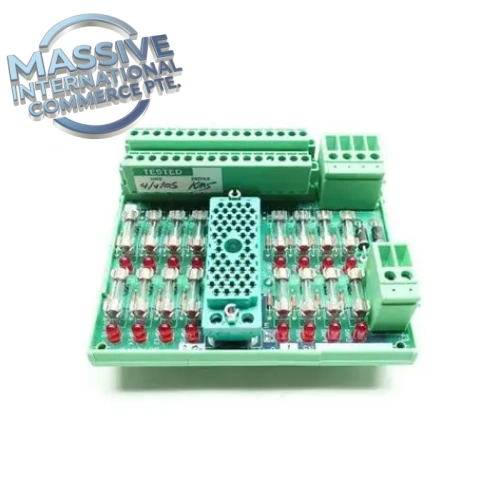

The Triconex 3000510-380, also known as model 9563, is a digital input termination panel built for Triconex Tricon TMR Safety Instrumented Systems (SIS). It acts as the field wiring interface between Tricon digital input modules and 24VDC field sensors, switches and interlock devices. This termination assembly provides screw terminals, channel fuses and status LED indicators for discrete input signal routing, overcurrent protection and local circuit health indication. Widely deployed in oil & gas, petrochemical and power generation safety systems, it is a legacy spare for maintenance and retrofit of Tricon SIS installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3000510-380 |
| Alternate Model | 9563 |
| Brand | Triconex (Schneider Electric / Invensys) |
| Type | Digital Input Termination Panel |
| Compatible I/O Module | Tricon 3503E, 3505E digital input modules |
| Field Signal | 24V DC discrete input |
| Fuse Rating | 1A slow-blow fuse per channel, blown fuse LED indication |
| Mounting | DIN rail mount |
| Isolation | Galvanic isolation between field wiring and backplane side |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Dimensions | 170 × 125 × 50 mm |
| Net Weight | 0.7 kg |
| Safety Compatibility | Supports SIL3 TMR safety loop architecture |
| Certifications | CE, UL |
| Product Status | OEM discontinued, aftermarket spare only |
Key Features
- Dedicated termination assembly for Tricon 24V DC digital input signals
- Individual 1A slow-blow fuse for each channel with blown-fuse LED alarm
- Front panel status LEDs to show live channel and fuse fault condition
- Screw terminal blocks for secure field wiring termination
- Galvanic isolation to suppress field noise and protect TMR I/O modules
- Compact DIN rail form factor for cabinet mounting
- Modular wiring design: field cables remain connected during I/O module replacement
Installation & Testing Notes
- Mount the termination panel on DIN rail in SIS control cabinet
- Route 24VDC field sensor wiring to the screw terminals; verify wiring against loop drawings
- Inspect each channel fuse before power application; confirm no short circuits
- Check cable shielding and grounding to reduce EMC interference
- After installation, perform full channel loop test from field switch to Tricon controller
- This termination panel does NOT support hot swap. Isolate all field power before removal
- Periodically inspect fuses and terminal tightness in high-vibration plant environments
FAQ
Q: What is the alternate model for 3000510-380? A: 9563, same digital input termination panel.
Q: Which Triconex I/O modules does it match? A: 3503E and 3505E digital input modules.
Q: What is the fuse rating per channel? A: 1A slow-blow fuse with blown fuse LED indicator.
Q: Is it hot swappable? A: No, field power must be isolated before disassembly.
Q: What safety level does it support? A: Designed for use within SIL3 certified Tricon TMR safety instrumented loops.
