Description
Product Overview

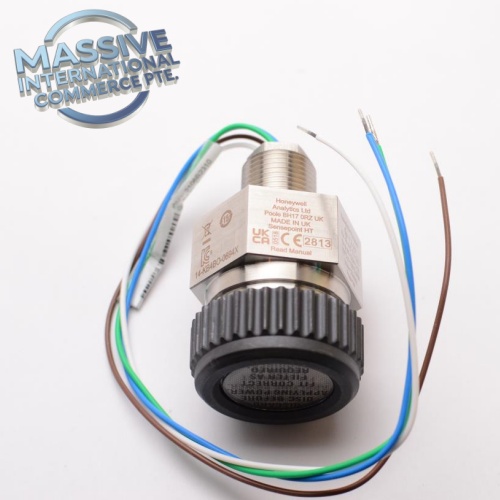

The Honeywell 2106B2310 is a high-temperature catalytic bead flammable gas sensor designed for the Sensepoint HT gas detection system. Certified to ATEX standards, this M20 threaded sensor is built for hazardous industrial environments where elevated process temperatures exist, capable of continuous monitoring of combustible gas mixtures in refineries, chemical plants, offshore platforms, and furnace monitoring applications. It serves as a direct field-replaceable sensing probe for Honeywell Sensepoint HT gas transmitters.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 2106B2310 |
| Manufacturer | Honeywell (Zellweger Analytics) |
| Product Type | High Temperature Flammable Gas Sensor, Catalytic Bead |
| Thread Size | M20 |
| Measurement Range | 0–100% LEL (also supports 0–20% LEL, dependent on transmitter control card) |
| Operating Temperature | Up to 150°C high-temperature rated |
| Response Time | T60 <6 seconds; T90 <10 seconds |
| Gas Target | Combustible / flammable hydrocarbon gases |
| Sensor Principle | Catalytic combustion |
| Enclosure Thread | M20 |
| Mounting | Direct screw mounting to Sensepoint HT transmitter housing |
| Weight | ~0.3kg |
Compliance & Certifications
- ATEX hazardous area certification for explosive atmospheres
- IECEx compliant for global hazardous location deployment
- Meets industrial gas safety standards for oil & gas, petrochemical industries
- Factory calibrated prior to shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry, temperature-controlled warehouse (10°C ~ 30°C), low humidity <70% RH
- Keep sealed in original factory packaging; avoid vibration, dust, corrosive vapors, direct sunlight
- Do not store alongside solvents or reactive chemicals that can poison catalytic bead elements
Installation Instructions
- Isolate power supply to the gas transmitter before sensor replacement
- Carefully remove old sensor probe, avoid damage to wiring terminals
- Thread 2106B2310 M20 sensor into transmitter housing, torque to manufacturer recommended value (do not over-tighten)
- Complete wiring connections following Honeywell Sensepoint HT wiring diagram
- Perform gas calibration and functional test after installation
- Only certified technicians should install and calibrate in ATEX hazardous zones
FAQ
Q: What transmitter does 2106B2310 fit? A: It is designed exclusively for Honeywell Sensepoint HT high temperature flammable gas detector units.
Q: Can this sensor work for hydrogen detection? A: Yes, catalytic bead sensor responds to hydrogen and most combustible hydrocarbon gases, calibration required for target gas.
Q: What is the typical service life? A: Expected lifespan is 3–5 years under normal clean industrial conditions; catalytic bead can be poisoned by silicones, lead or sulphur compounds, shortening service life.
Q: Is this an ATEX certified sensor? A: Yes, 2106B2310 carries ATEX certification for use in explosive hazardous areas.
Q: Does it ship factory pre-calibrated? A: Factory baseline calibration is completed, but site gas calibration is mandatory after field installation.
