Description
Product Overview

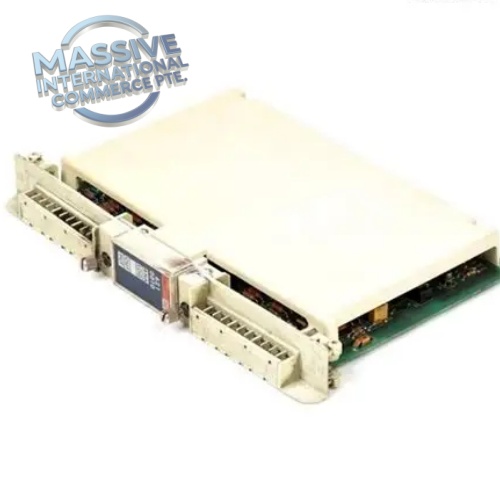

621-0010-A is a Honeywell ISSC 620 series 4-channel analog output module, the suffix A denotes the hardware revision A version. It converts digital control signals from the ISSC 620 controller backplane into standard 4–20mA analog current loop outputs to drive field valve positioners, variable speed regulators and analog indicators. It is a legacy DCS spare; Honeywell discontinued original manufacturing, available stock consists of new surplus or fully tested refurbished units for existing plant control system maintenance.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | Honeywell ISSC |
| Part Number | 621-0010-A |
| Product Type | 4-Channel Analog Output Module |
| Platform | ISSC 620 Programmable Control System |
| Output Signal | 4–20 mA per channel, isolated analog loop |
| Resolution | 12-bit DAC |
| Accuracy | ±0.1% full scale typical |
| Channel Count | 4 independent output channels |
| Backplane Supply | 5 VDC from rack backplane |
| Output Loop Power | External 24 VDC field loop supply |
| Isolation | Channel-to-backplane galvanic isolation |
| Mounting | Plug-in rack mount, fits ISSC 620 chassis |
| Operating Temperature | 0 ~ +60 °C |
| Humidity | 5%–95% RH, non-condensing |
| Enclosure Rating | IP20 (circuit board assembly) |
| Net Weight | Approx.0.3 kg |
Key Features
- 4 Independent 4–20mA Output Loops: Each channel can separately control field modulating valves and analog actuators for continuous process regulation.
- 12-bit High Precision DAC: Delivers stable analog output with low drift for temperature, pressure and flow closed-loop control.
- Galvanic Channel Isolation: Protects controller backplane from field loop surges and ground loop interference.
- Onboard Diagnostics & LED Status Indication: Detects loop open circuit, short circuit and module faults; front LEDs show module health and channel status.
- Rack Plug-in Form Factor: Simple installation in ISSC620 chassis; supports hot swap when system configuration permits.
- Revision A Hardware Variant: 621-0010-A is Rev A version of base model 621-0010 with early hardware layout.
- Legacy Process Control Spare: Widely used in older petrochemical, power and pulp & paper ISSC 620 DCS systems.
Applications
- Petrochemical plant continuous process control cabinets
- Power station auxiliary boiler and water treatment control systems
- Pulp and paper mill analog valve control racks
- Food & beverage process modulating control panels
- Retrofit and spare replacement for existing Honeywell ISSC 620 DCS
Installation & Maintenance Notes
- Execute lockout-tagout and remove rack power before removing or inserting module.
- Use ESD protection when handling PCB assembly to prevent static damage.
- Verify field 24VDC loop wiring; open/short circuit on 4-20mA wiring will trigger channel fault alarm.
- Separate analog loop signal cables away from high-current power cables to minimize EMI interference.
- Confirm firmware compatibility and rack slot addressing after replacement.
- Perform 4–20mA output calibration on each channel after module installation or replacement.
- Confirm full part number and hardware revision match when ordering spare module.
FAQ
Q: What does suffix “-A” in 621-0010-A mean? A: “-A” stands for Hardware Revision A, the original early revision of the 621-0010 analog output module.
Q: What control platform is this module designed for? A: Honeywell ISSC 620 series programmable control system.
