Description
Product Overview

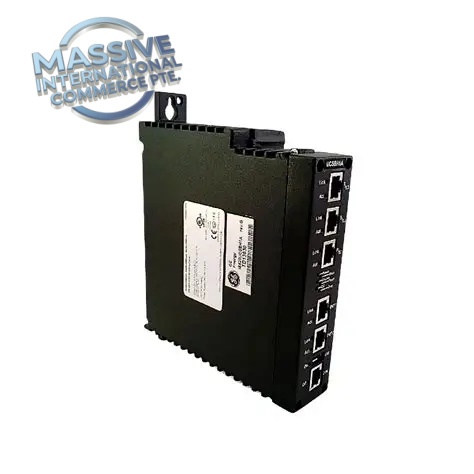

The IS220UCSAH1A is the standalone embedded controller (UCSA) for GE Mark VIe / Mark VIeS turbine control systems, part of the Speedtronic family. It functions as the main computing node to execute real-time turbine control, protection, startup sequencing and plant logic. It communicates with distributed I/O packs over GE proprietary IONet, and connects to HMI, historian and external DCS via standard Ethernet. It supports simplex, duplex and TMR redundant architectures for gas turbine, steam turbine and combined cycle power generation applications, compatible with EX2100e and LS2100e excitation control platformselectronic….
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | IS220UCSAH1A |
| Manufacturer | GE General Electric |
| Platform | Mark VIe / Mark VIeS |
| Processor | Freescale PowerQUICC II Pro (PowerPC 8349), 667 MHz |
| Memory | 256 MB DDR SDRAM |
| OS | QNX Neutrino Real-Time Operating System |
| Software | ControlST |
| Power Input | 18–32 VDC |
| Front Ports | Multiple Ethernet ports, USB service port, COM port |
| Operating Temp | 0 °C ~ +65 °C |
| Humidity | 5%–95% non-condensing |
| Enclosure | Fanless rugged metal module, rack mount |
| Hazardous Rating | NFPA Class 1, Division 2 approved |
Key Features
- Deterministic real-time execution for turbine governing, protection and sequence control
- Fanless passive cooling design, no moving parts for high MTBF
- Multi-port Ethernet: IONet for distributed I/O, plus LAN for HMI and engineering access
- Built-in self-diagnostics, fault reporting and status LED indicators on front panel
- Supports dual redundant hot standby with automatic bumpless failover
- USB local service port for firmware update, configuration download and diagnostics
- Time synchronization for event sequence recording and trip data capture
- Suitable for heavy-duty power generation and mechanical drive turbine controls
Application
Primary deployment on gas turbines, steam turbines, combined cycle power plants, CHP and large rotating machinery protection. It serves as the core CPU for Mark VIe control racks in utility and industrial power generation.
Installation & Maintenance Notes
- Strict ESD protection required during handling and replacement
- Mount inside control cabinet, maintain proper airflow for passive heat dissipation
- Separate IONet control network from office LAN to avoid communication interference
- Always back up control database before firmware upgrade or module swap
- Verify DC supply voltage and ground integrity before powering up the controller
- Check LED status and ControlST diagnostic screens after replacement
FAQ
Q: What is UCSA? A: UCSA stands for Universal Control Standalone Assembly, the Mark VIe main processor module.
Q: Can IS220UCSAH1A run in TMR configuration? A: Yes, it supports triple modular redundancy when matched with corresponding Mark VIe I/O packs.
Q: What software is used to program this controller? A: GE ControlST suite for logic configuration, trending, diagnostics and commissioning.
