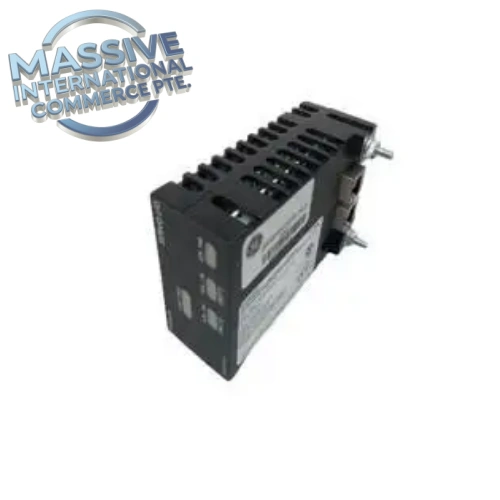

GE IS220PSVOH1B | Mark VIe Dual-Loop Servo I/O Pack For Turbine Governor Control In Stock

Description

At-A-Glance Executive Brief

• Model: IS220PSVOH1B
• Brand: GE / GE Vernova
• Part Type: Servo Interface I/O Pack (Servo Control Pack)
• Lifecycle status: OEM legacy product; stocked for brownfield Mark VIe turbine control retrofits
• System compatibility: GE Speedtronic Mark VIe, IONet dual Ethernet, pairs with TSVO terminal board and WSVO servo driver
• Weight: 1.0 kg

Technical Introduction

Failure of the IS220PSVOH1B interrupts hydraulic servo valve closed-loop positioning, causing loss of turbine governor control, inability to regulate fuel/steam valves and potential unit trip. The IS220PSVOH1B is a high-speed local servo I/O pack for GE Mark VIe turbine control systems. It runs two independent servo control loops locally, communicating over redundant IONet Ethernet to the Mark VIe controller. It connects to the TSVO terminal board and WSVO servo driver to drive electro-hydraulic servo valves, processing LVDT position feedback and generating high-speed drive commands for turbine fuel, governor and steam control actuators. Local processing minimizes network latency for critical closed-loop regulation. Front panel LEDs show power, attention, servo loop enable and dual IONet link health. It includes onboard flash/RAM, temperature monitoring and soft-start protection. Combined-cycle, steam and gas turbine power plants maintain spare packs to reduce forced outage risk during legacy Mark VIe maintenance and migration.

• Best Suited For
  • GE Mark VIe gas / steam turbine governor & fuel valve control cabinets
  • Dual-loop hydraulic servo actuator positioning with LVDT feedback
  • Direct drop-in replacement for existing GE IS220PSVOH1B Mark VIe servo I/O hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Module configuration and servo tuning parameters reside in ToolboxST. After replacement, download application configuration and verify servo loop setup.
• Supports hot-swap in properly configured Mark VIe racks, but always confirm the remaining control path is healthy before removing the pack.
• LVDT wiring polarity and calibration are critical; reversed feedback causes unstable valve response or actuator runaway.
• Use ESD precautions when handling; static discharge can damage high-speed analog servo measurement circuits.
• After replacement, perform servo loop checkout, step response test and validate valve travel limits before returning the turbine to service.

Adaptive QA & Testing Protocol

Each IS220PSVOH1B is bench tested on Mark VIe IONet test rack. We load the servo application and verify redundant IONet communication. Two servo loops are tested with simulated LVDT position feedback to validate closed-loop response, command output and loop enable functions. Front panel LED indicators and onboard temperature monitoring are checked. Flash memory and firmware integrity are verified. Connector inspection and continuity testing are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is GE IS220PSVOH1B used for? A: It is a Mark VIe servo I/O pack that provides two independent high-speed closed-loop servo control channels for turbine hydraulic servo valves. It reads LVDT actuator position feedback and outputs drive commands via TSVO/WSVO hardware to control fuel and steam valves.

Q: What warranty applies for refurbished and NSFP IS220PSVOH1B? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect ToolboxST configuration, LVDT wiring faults and hydraulic actuator transients.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus GE Mark VIe servo I/O packs.

Q: Is IS220PSVOH1B hot-swappable? A: Yes, Mark VIe I/O packs including IS220PSVOH1B are designed for hot swap within the I/O rack, provided the control system is configured with a redundant control path.
