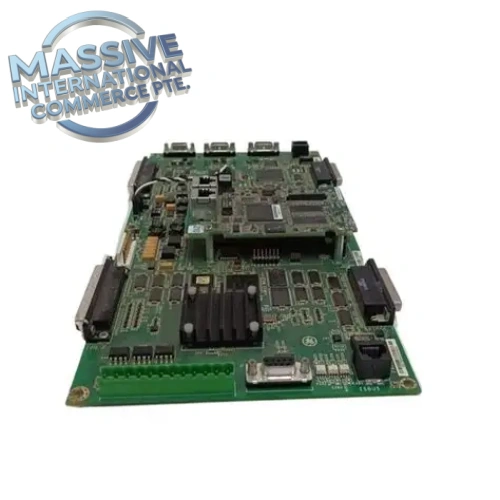

GE IS210MACCH2A Mark VIe MACC Multi-Application Converter Control Board, Turbine High Speed Servo Control Module

Description

Product Overview

The GE IS210MACCH2A is a MACC (Multi-Application Converter Control) board for GE Vernova Mark VIe Speedtronic distributed turbine control system. This high-performance processor board executes fast closed-loop servo control for gas/steam turbine fuel valves, governor actuators and hydraulic control loops. It works together with matching IS200MACCH1A interface board to collect transducer signals, compute control algorithms and output drive commands. Widely deployed in combined cycle power plants, simple-cycle gas turbines and steam turbine governing systems. It supports simplex, dual redundant and TMR configurations and uses ToolboxST software for commissioning and diagnostics. Conformal coated PCB for rugged power plant cabinet environments.

Technical Specifications

Key Features

1. High-speed MACC control board for turbine governing and safety actuator closed-loop servo control.
2. Used as paired assembly with IS200MACCH1A interface card for LVDT/RVDT position feedback signal conditioning.
3. Conformal coated PCB design for dust and moisture resistance inside power plant control cabinets.
4. Supports TMR triple modular redundant architecture for safety-critical turbine protection and governing loops.
5. Onboard continuous diagnostics including watchdog monitoring, transducer open/short detection and communication fault alarm.
6. IONet high-speed backplane communication for data exchange with Mark VIe system controllers and HMI.
7. Tunable servo PID control optimized for hydraulic valves and turbine nonlinear dynamic characteristics.
8. ToolboxST enabled for configuration, loop tuning, fault logging and firmware upgrade.

Installation Notes

• Install in standard Mark VIe VME control rack; verify firmware compatibility with existing Mark VIe controllers.
• Must use matched IS200MACCH1A interface board for complete MACC assembly.
• Separate low-level LVDT/RVDT feedback wiring from high-current power cables to reduce EMI noise.
• Wear ESD wrist strap when handling conformal coated PCB to avoid electrostatic damage.
• Follow plant lockout/tagout procedures before removing board, even for redundant rack maintenance.
• Backup Mark VIe project in ToolboxST before card replacement.
• After installation, perform valve loop calibration, PID tuning and full protection proof test before turbine return to service.

Testing Procedure

1. Visual inspection: Inspect PCB, edge connectors and front panel for scratches, bent pins, coating damage or corrosion.
2. Install IS210MACCH2A paired with IS200MACCH1A interface board into Mark VIe rack, apply 24VDC power and run power-up self-test.
3. Connect via ToolboxST, confirm board identification and healthy online status.
4. Inject simulated LVDT/RVDT position signals to validate position reading accuracy.
5. Send servo output commands and verify closed-loop response and PID performance.
6. Simulate transducer open/short faults to confirm diagnostic alarms trigger correctly.
7. Save configuration backup and fault logs, record calibration data and tag module for spare inventory.

FAQ

Q: What is IS210MACCH2A? A: It is GE Mark VIe MACC multi-application converter control board, paired with IS200MACCH1A interface board for turbine valve servo governing control.

Q: What software configures IS210MACCH2A? A: ToolboxST is used for commissioning, tuning, diagnostics and firmware updates.

Q: Can IS210MACCH2A be hot swapped? A: Hot swap only allowed in qualified redundant Mark VIe racks under controlled maintenance and outage procedures.

Q: What redundancy modes does it support? A: Simplex, dual redundant and TMR triple modular redundant for turbine safety and governing applications.
