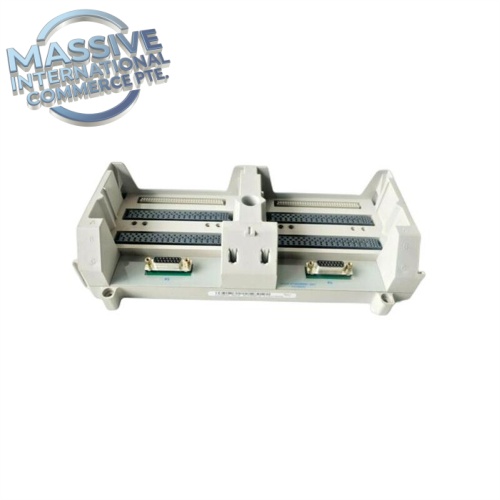

Emerson 1C31205G01 | Legacy Ovation 2-Slot RNM Base Chassis

Description

At-A-Glance Executive Brief

• Model: 1C31205G01
• Brand: Emerson Ovation (Westinghouse)
• Part Type: Remote Node Controller Base
• Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
• System compatibility: Ovation DCS remote node architecture
• Slot: 2 slots for Remote Node Modules (RNM), supports primary + redundant backup RNM
• Core function: Backplane base assembly for remote node modules, provides power distribution, proprietary bus communication, rotary switch for node address setting, connects to local I/O branches and transition panel

Technical Introduction

The 1C31205G01 remote node controller base is the core carrier chassis for Ovation remote node system. It accommodates up to two RNM (Remote Node Modules), supporting redundant master/standby configuration to eliminate single point of failure. It provides backplane bus, 24VDC power routing and I/O branch interfaces. It directly connects two I/O branches, and a D-sub connector extends to up to six extra I/O branches through local communication cables. Built-in rotary switch is used to set remote node physical address. It links to remote node transition panel and communicates back to Ovation DPU over the control loop, widely used for distributed I/O in power plant boiler, turbine and BOP systems.

Engineer’s Takeaway This is RNM base (2 slots for remote node controller modules), different from 1C31206G01 MAU 4-slot I/O base. 1C31205G01 hosts the remote node communication controller, while MAU base only holds EMOD+PMOD I/O cards. Node address rotary switch must be set correctly; duplicate node addresses will cause remote I/O communication conflict.

Core Technical Specifications

Field Engineer’s Tech Notes

• Lock out and isolate remote node I/O branches before replacing base assembly to prevent unexpected valve/actuator action.
• Inspect backplane connector pins for bending, oxidation or burn marks before inserting RNM modules.
• Set rotary node address strictly according to system drawing; duplicate node address leads to remote I/O communication failure.
• This base supports dual RNM redundant configuration; verify primary/backup RNM handover function after installation.
• Check communication cable shielding and single-point grounding. After replacement, run node self-test and confirm all I/O branch points online without communication alarms.

Adaptive QA & Testing Protocol

Each unit undergoes backplane continuity and bus connectivity testing. 24VDC power distribution test verifies stable power supply to both RNM slots. Rotary address switch function and D-sub I/O branch interface are validated. Visual inspection checks housing integrity, backplane pins and conformal coating. Test reports and short validation videos are available upon request.

Buyer’s FAQ

Q: What is difference between 1C31205G01 and 1C31206G01? A: 1C31205G01: 2-slot RNM remote node controller base, holds remote node communication controller modules. 1C31206G01: 4-slot MAU base, holds I/O EMOD+PMOD signal cards. They work together in remote I/O system but cannot be swapped.

Q: What warranty applies to new surplus or refurbished Emerson 1C31205G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage caused by backplane short, overvoltage, wrong node address setup and corroded pins from poor cabinet environment.

Q: Does 1C31205G01 support redundant RNM? A: Yes, it has two slots for primary and backup Remote Node Modules for hot standby redundancy.

Q: What lead time applies to this obsolete Ovation remote node base? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
