Description
Product Overview

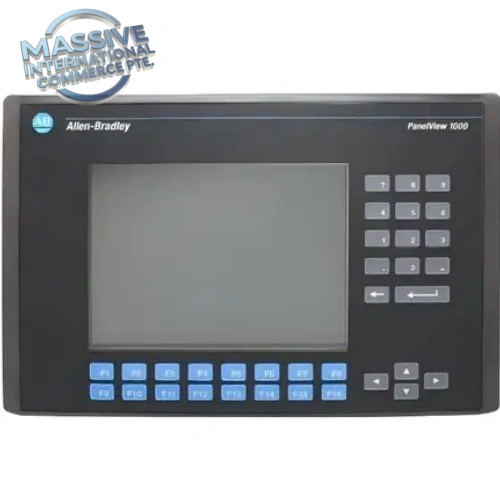

The 2711-K10C8 is a legacy panel-mount operator interface terminal from Rockwell Automation Allen‑Bradley PanelView Standard 1000 series. It features a 10.4-inch color LCD plus full physical keypad (no touchscreen) for machine and process control, used to display process values, alarms, trends and execute manual operator commands. It communicates with Allen‑Bradley PLC-5, SLC 500 and other legacy controllers over DH+ and RS232. This model is end-of-life (EOL), widely found as spare part in manufacturing, water treatment, power and packaging production lines.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Part Number | 2711-K10C8 |
| Product Type | Keypad HMI Operator Terminal |
| Series | PanelView Standard 1000 |
| Display | 10.4″ Color LCD, 640 × 480 resolution |
| User Input | Hard membrane keypad (non-touch) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Communication Ports | DH+, RS‑232 serial |
| Storage | CompactFlash card for HMI application program |
| Front Panel Rating | IP65 (when properly panel installed) |
| Operating Temperature | 0°C ~ +55°C |
| Humidity | 5–95% non-condensing |
| Certifications | UL, CSA, CE |
| Mounting | Cutout panel mount |
Key Features
- Physical membrane keypad design, suited for heavy-factory environments where touch screens are prone to damage or accidental activation.
- 10.4-inch color display for real-time process data, alarm banners and graphic screen visualization.
- Native DH+ interface for direct connection to classic Allen‑Bradley PLC systems, plus RS232 for printer or file transfer.
- CompactFlash card stores HMI application, allowing easy backup, restore and program download.
- Rugged front panel IP65 protection against dust and liquid splash on cabinet front face.
- Supports alarm logging, data trending, recipe handling and operator security access control.
- EOL legacy unit; reliable spare for existing retrofit and maintenance of older automation systems.
Installation & Testing Notes
- Use proper panel gasket during installation to maintain IP65 rating; avoid over-tightening mounting clips.
- Confirm AC input voltage matches terminal rating before power-up.
- HMI project file must be downloaded via RS232 or CompactFlash using PanelBuilder32 software.
- After commissioning, verify DH+ network node address, PLC tag communication and alarm display.
- Check keypad button responsiveness, backlight brightness and screen for fading before spare deployment.
- Keep spare CompactFlash backup image of running application for fast field recovery.
FAQ
Q: Does 2711-K10C8 have touchscreen? A: No. “K” means keypad-only version. “T” suffix models are touchscreen PanelView 1000.
Q: What software programs this terminal? A: PanelBuilder32 software, not PanelView Plus configuration tools.
Q: Is this still in active production? A: No, it is discontinued by Rockwell; available only as refurbished or surplus spare parts.
